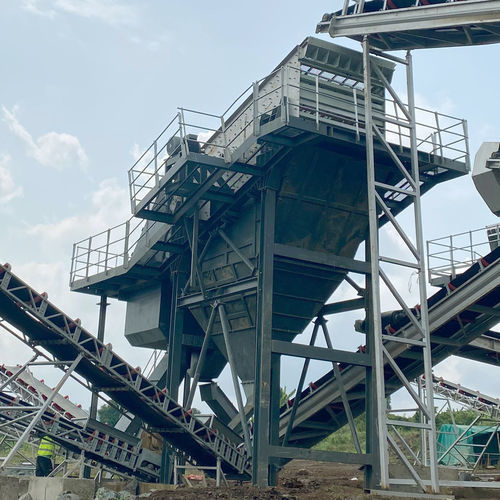

Polygonmach steps up its game in the industry with the PMSV Mobile Crushing and Screening plant, also known as the MOBILE SAND MAKING MACHINE. This state-of-the-art solution is meticulously engineered for the production of high-quality sand, with a granule size of 0-5 mm, renowned for its exceptional cubic shape.
The PMSV is a proud testament to advanced design and engineering, combined with premium quality components and excellent craftsmanship. Whether it’s pre-crushed materials from primary and secondary operations, or natural stone no larger than 35 mm, the PMSV handles it all with finesse. It can process a variety of materials with different hardness levels such as granite, basalt, dolomite, gabbro, limestone, producing satisfying results.
The PMSV boasts a production capacity ranging from 100-250 tph, depending on the hardness level of the material. The maximum feeding size is between 35-50 mm, with a feeding height of 3.8 meters. The plant is powered by a 185-385 kW motor and requires a 400 kVA electric generator. Weighing in at just 28 tonnes and measuring 14(L) x 3(W) x 14.2(L) meters, the plant is designed for efficiency and easy transport.
The PMSV Mobile Sand Making Plant is an assembly of:
Feeding Hopper with vibrating feeder
Feeding Conveyors
Vibrating Screen with 3 decks
Feedback Conveyor
Stockpile Conveyors
Mobile chassis with hydraulic legs
Automation System with PLC and remote controller
Dust Removing System
Electric Generator Set (Optional)
Polygonmach's PMSV is user-friendly and promises easy mounting and assembling. It becomes operational in just a few hours after reaching the job site.
