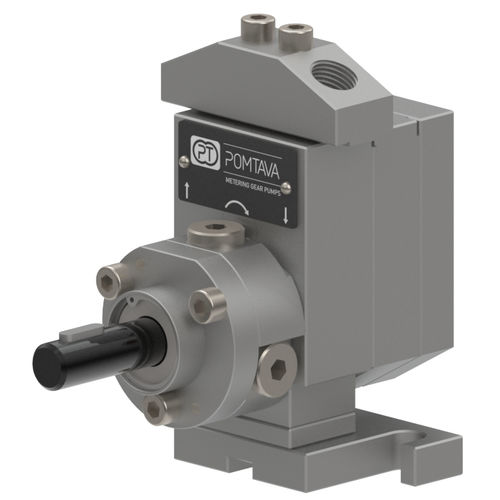

Gear pump 1610-4-1
for polyurethanefor epoxy resinfor resins

Gear pump - 1610-4-1 - POMTAVA SA - for polyurethane / for epoxy resin / for resins
Gear pump - 1610-4-1 - POMTAVA SA - for polyurethane / for epoxy resin / for resins
Gear pump - 1610-4-1 - POMTAVA SA - for polyurethane / for epoxy resin / for resins - image - 2
Add to favorites
Compare this product
Go to the POMTAVA SA website for more information

Characteristics

Technology
gear
Fluid
for polyurethane, for epoxy resin, for resins, for adhesives
Mobility
stationary
Domain
industrial
Applications
metering, high-precision
Protection level
standard
Flow

Min.: 0.03 l/min
(0.00793 us gal/min)

Max.: 0.6 l/min
(0.1585 us gal/min)

Pressure

100 bar
(1,450.377 psi)

Fluid temperature

135 °C
(275 °F)

Description

Multicomponents Specification(s) : I/O on the body Sealing : Lip seals and liquid barrier (16KA) Rotation speed : From 10 to 200 min-1, depending on the product involved Standard rotation : Clockwise rotation (A) Input/Output : 2 holes Ø 6mm on the body of the pump. Delivered with connecting block G1/4’’ Drive shaft diameter : Ø 12mm with a 4mm key Drive shaft height : H=40mm
