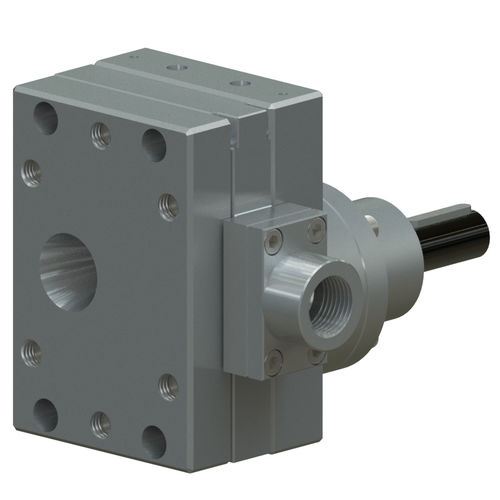

Gear pump 3610-2-1
for polyurethanefor epoxy resinfor resins

Gear pump - 3610-2-1 - POMTAVA SA - for polyurethane / for epoxy resin / for resins
Gear pump - 3610-2-1 - POMTAVA SA - for polyurethane / for epoxy resin / for resins
Gear pump - 3610-2-1 - POMTAVA SA - for polyurethane / for epoxy resin / for resins - image - 2
Add to favorites
Compare this product
Go to the POMTAVA SA website for more information

Characteristics

Technology
gear
Fluid
for polyurethane, for epoxy resin, for resins, for adhesives
Mobility
stationary
Domain
industrial
Applications
metering, high-precision
Other characteristics
flush
Flow

Min.: 0.22 l/min
(0.05812 us gal/min)

Max.: 4.4 l/min
(1.16236 us gal/min)

Pressure

100 bar
(1,450.377 psi)

Fluid temperature

135 °C
(275 °F)

Description

Multicomponents Specification(s) : Following plate (PS) Sealing : Lip seals and liquid barrier (36KA) Rotation speed : From 10 to 200 min-1, depending on the product involved Standard rotation : Clockwise rotation (A) Output pressure : Max. 100 bars (22 cc/rev = max. 50 bars) Input/Output : Cone shape input Ø25.70mm on the rear cover. Output on the center plate and gears : G 1/4” (6cc/rev), G 1/2” (10 + 16cc/rev), G 3/4” (22cc/rev) Drive shaft diameter : Ø 16mm with a 5mm key Mounting of the pump : Screwed flush against the following plate by 4 M6 screws
