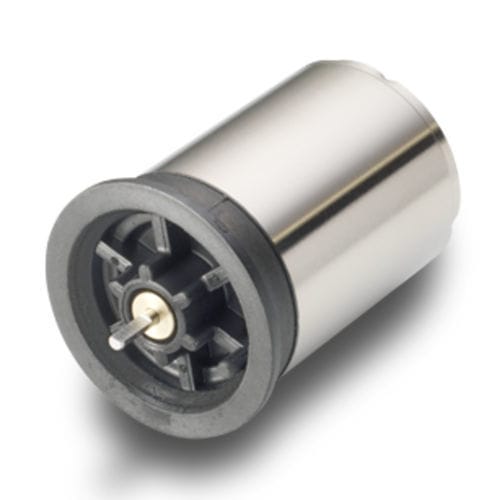

DC motor 22S28 seriesbrushed24 Vpermanent magnet
Add to favorites
Compare this product
Characteristics
- AC/DC
- DC
- Type
- brushed
- Voltage
- 24 V
- Configuration
- permanent magnet, ironless, compact, small
- Applications
- for pumps, for medical equipment, for robotics, for dispensers
- Other characteristics
- custom, high-power
- Power
2.4 W, 2.5 W
(0.003 hp, 0.003 hp)- Intensity
0.15 A, 0.29 A
- Torque
0.0039 Nm, 0.0041 Nm
(0.0029 ft.lb, 0.003 ft.lb)- Rotational speed
7,940 rpm, 9,600 rpm, 10,000 rpm
(49,888.49 rad.min-1, 60,318.58 rad.min-1, 62,831.85 rad.min-1)- Diameter
22 mm
(0.87 in)- Operating temperature
Max.: 100 °C
(212 °F)Min.: -30 °C
(-22 °F)
Description
With its Alnico magnet, the 22S28 brush DC motor offers a good price-to-performance ratio for a very small package size. It can provide up to 4 mNm continuously, and operates at up to 80% efficiency with a long life.
Product Highlights
• Ironless construction
• Alnico magnet for high performance
• High power density package
• Precious metal commutation
• Long brush life
• Compact design
• Winding possibilities
• REE windings to reduce electro erosion
Customization Available
• Cable or terminal outputs
• Coil modifications - resistance and inductance
• Custom shafts - flats, knurling, diameter, length
• Fixation holes
• Sleeve or ball bearings
Applications
• Respiratory and Ventilation Devices
• Dosing and Dispensing Systems
• Clinical Diagnostics
• Lab Automation
• Miniature Pumps
• Land Surveying
• Nailers and Framing Systems
• Valve Actuation
• Humanoid Robot
