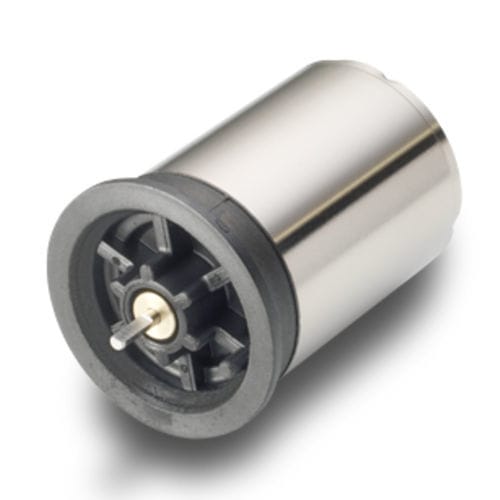

DC motor 22S78 seriesbrushed24 V18 V
Add to favorites
Compare this product
Characteristics
- AC/DC
- DC
- Type
- brushed
- Voltage
- 24 V, 18 V
- Configuration
- permanent magnet, coreless, ironless, compact
- Applications
- for pumps, for medical equipment, for robotics, for dispensers
- Other characteristics
- high-power
- Power
4.6 W, 5.5 W
(0.006 hp, 0.007 hp)- Intensity
0.29 A, 0.41 A
- Torque
0.0077 Nm, 0.0089 Nm
(0.0057 ft.lb, 0.0066 ft.lb)- Rotational speed
7,780 rpm, 8,550 rpm, 10,000 rpm
(48,883.18 rad.min-1, 53,721.23 rad.min-1, 62,831.85 rad.min-1)- Diameter
22 mm
(0.87 in)- Operating temperature
Max.: 100 °C
(212 °F)Min.: -30 °C
(-22 °F)
Description
The 22S78 brush DC design combines a high-grade magnet with precious metal commutation in a very dense package size. This coreless DC motor can deliver a torque greater than 8 mNm continuously, reaching up to 70% efficiency while maintaining a long life time.
Product Highlights
• Ironless construction
• Neodymium magnet for high performance
• High power density package
• Precious metal commutation
• Long brush life
• Compact design
• Winding possibilities
• REE windings to reduce electro erosion
Customization Available
• Cable or terminal outputs
• Coil modifications - resistance and inductance
• Custom shafts - flats, knurling, diameter, length
• Fixation holes
• Sleeve or ball bearings
Applications
• Respiratory and Ventilation Devices
• Dosing and Dispensing Systems
• Clinical Diagnostics
• Lab Automation
• Miniature Pumps
• Land Surveying
• Valve Actuation
• Nailers and Framing Systems
• Humanoid Robot
