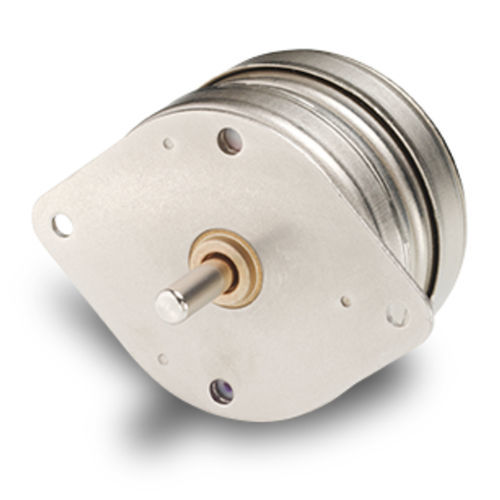

DC motor 60L024B
stepper5 V12 V

DC motor
DC motor
Add to favorites
Compare this product


Characteristics

AC/DC
DC
Type
stepper
Voltage
5 V, 12 V
Protection class
maintenance-free
Configuration
compact, mini
Number of poles
single-pole, 2-pole
Applications
for medical equipment, for robotics, for the pharmaceutical industry
Other characteristics
custom
Intensity

0.46 A, 1.09 A

Torque

0.1306 Nm, 0.1695 Nm
(0.0963 ft.lb, 0.125 ft.lb)

Diameter

60 mm
(2.36 in)

Operating temperature

Min.: -20 °C
(-4 °F)

Max.: 70 °C
(158 °F)

Description

The 60L024B provides up to 24 oz-in (169.5 mNm) of holding torque in a 24 mm frame size, making it perfect for higher torque applications. It is available in 5 or 12 volt windings, and in unipolar or bipolar designs. Product Highlights • Excellent open loop control - no encoder necessary • Digitally controlled - easy to use with a micro processor • Cost effective - compact design, lower integration cost • Maintenance free - no brushes to replace • Unipolar and bipolar winding options Customization Available • Ball bearings, clutch magnets, dampers • Coil modifications - resistance and inductance • Custom shafts - flats, knurling, diameter, length • Magnets - to yield higher torque or reduced detent levels • Mechanical integration upon request (housing, front & rear flange, shaft) • Pinions and gears • Wiring - connectors, lead length, shrink tubing Applications • Valve Actuation • Clinical Diagnostics • Pharmaceutical Dispensing • Robotic Applications • Antenna Positioning • Printers and Copiers • Switching Systems
