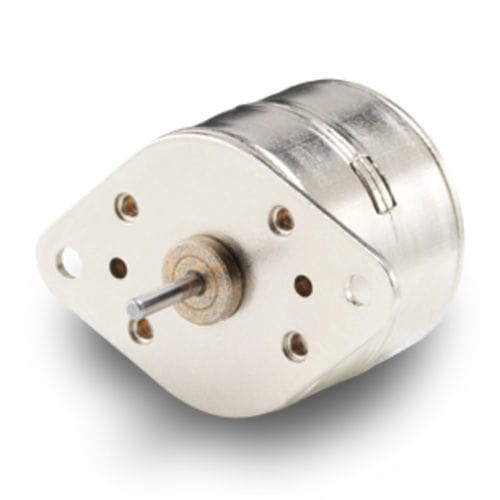

DC motor 20M020D sseries
stepper5 V12 V

DC motor
DC motor
Add to favorites
Compare this product


Characteristics

AC/DC
DC
Type
stepper
Voltage
5 V, 12 V
Protection class
maintenance-free
Configuration
compact, small, mini
Number of poles
single-pole, 2-pole
Applications
for medical equipment, for robotics, for the pharmaceutical industry
Other characteristics
custom
Intensity

0.1 A, 0.25 A

Torque

0.0078 Nm, 0.011 Nm
(0.0058 ft.lb, 0.0081 ft.lb)

Diameter

20.5 mm
(0.81 in)

Operating temperature

Max.: 70 °C
(158 °F)

Min.: -20 °C
(-4 °F)

Description

The 20M020D provides up to 1.55 oz-in (10.95 mNm) of holding torque in a 20 mm frame size. The neodymium magnets provide high power density for applications that need moderate torque in a small package. It is available in 5 or 12 volt windings, and in unipolar or bipolar designs. Product Highlights • Excellent open loop control - no encoder necessary • Digitally controlled - easy to use with a micro processor • Cost effective - compact design, lower integration cost • Maintenance free - no brushes to replace • Unipolar and bipolar winding options Customization Available • Ball bearings, clutch magnets, dampers • Coil modifications - resistance and inductance • Custom shafts - flats, knurling, diameter, length • Magnets - to yield higher torque or reduced detent levels • Mechanical integration upon request (housing, front & rear flange, shaft) • Pinions and gears • Wiring - connectors, lead length, shrink tubing Applications • Clinical Diagnostics • Valve Actuation • Pharmaceutical Dispensing • Robotic Applications • Antenna Positioning • Printers and Copiers • Switching Systems
