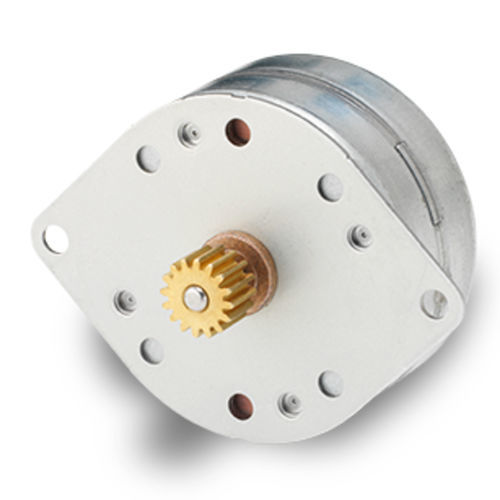

DC motor 42M100B series
stepper5 V12 V

DC motor
DC motor
Add to favorites
Compare this product


Characteristics

AC/DC
DC
Type
stepper
Voltage
5 V, 12 V
Protection class
maintenance-free
Configuration
compact, mini
Number of poles
single-pole, 2-pole
Applications
for medical equipment, for robotics, for the pharmaceutical industry
Intensity

0.16 A, 0.4 A

Torque

0.0452 Nm, 0.0494 Nm
(0.0333 ft.lb, 0.0364 ft.lb)

Diameter

42 mm
(1.65 in)

Operating temperature

Min.: -20 °C
(-4 °F)

Max.: 70 °C
(158 °F)

Description

42M100B provides up to 7 oz-in (49.4 mNm) of holding torque. The 100 steps per revolution results in a 3.6 degree step angle which provides fine positional resolution. Product Highlights • Excellent open loop control - no encoder necessary • Digitally controlled - easy to use with a micro processor • Cost effective - compact design, lower integration cost • Maintenance free - no brushes to replace • Unipolar and bipolar winding options Customization Available • Ball bearings, clutch magnets, dampers • Coil modifications - resistance and inductance • Custom shafts - flats, knurling, diameter, length • Magnets - to yield higher torque or reduced detent levels • Mechanical integration upon request (housing, front & rear flange, shaft) • Pinions and gears • Wiring - connectors, lead length, shrink tubing Applications • Valve Actuation • Clinical Diagnostics • Pharmaceutical Dispensing • Robotic Applications • Antenna Positioning • Printers and Copiers • Switching Systems
