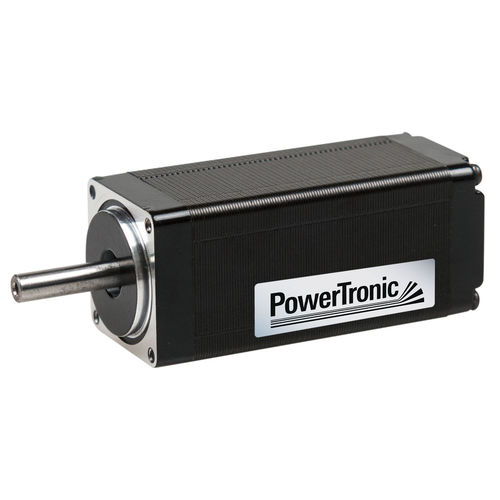

BLDC motor BL28S seriesthree-phase24 V8-pole
Add to favorites
Compare this product
Characteristics
- Type
- BLDC, three-phase
- Voltage
- 24 V
- Number of poles
- 8-pole
- Power
12.5 W, 25 W
(0.02 hp, 0.03 hp)- Torque
0.04 Nm, 0.08 Nm
(0.029502 ft.lb, 0.059005 ft.lb)- Rotational speed
3,000 rpm
(18,849.5559 rad.min-1)- Diameter
28 mm
(1.1 in)
Description
Additional information
Rated Voltage V:24
Rated Torque Ncm:4 / 8
Speed rpm:3000
Technical Data
Model:BL28.47S;BL28.67S
Rated Voltage (V):24;24
Rated Speed (min1):3000;3000
Rated Torque (Nom):4;8
Rated Power (W):12.5;25
Rated Current (A):0.8;1.6
Peak Current (A):2.4;4.8
Peak Torque (Nom):12;24
Rotor Inertia (gcm2):20;30
Torque Constant (Ncm/A):5;5
Back EMF (V/min1):4.5;4.5
Résistance (Q):2.5;3.4
Inductance (mH):1.1;1.3
Length (mm):47;67
Net Weight (kg):0.22;0.3
No. of Pôles:8
No. of Phases:3
Insulation Class:B
