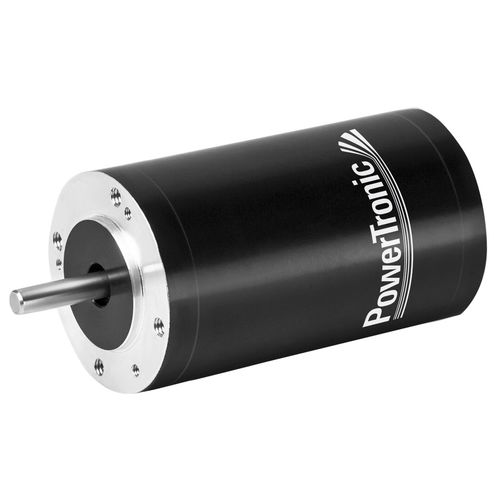

BLDC motor BL42R seriesthree-phase24 V8-pole
Add to favorites
Compare this product
Characteristics
- Type
- BLDC, three-phase
- Voltage
- 24 V
- Number of poles
- 8-pole
- Power
28 W, 56 W, 84 W
(0.04 hp, 0.08 hp, 0.11 hp)- Torque
0.09 Nm, 0.18 Nm, 0.27 Nm
(0.066381 ft.lb, 0.132761 ft.lb, 0.199142 ft.lb)- Rotational speed
3,000 rpm
(18,849.5559 rad.min-1)- Diameter
42 mm
(1.65 in)
Description
Additional information
Rated Voltage V:24
Rated Torque Ncm:9 / 18 / 27
Speed rpm:3000
Technical Data
Model:BL42.52R/BL42.72R/BL42.92R
Rated Voltage (V):24;24;24
Rated Speed (min'):3000;3000;3000
Rated Torque (Ncm):9;18;27
Rated Power (W):28;56;84
Rated Current (A):1.7;3.4;5.4
Peak Current (A):5.1;10.2;16
Peak Torque (Ncm):27;54;81
Rotor Inertia (gcmz):250;350;450
Torque Constant (Ncm/A):5;5;5
Back EMF (V/min’):5.23;5.23;5.23
Résistance (Q):6;4;3
Inductance (mH):4;3;2
Length (mm):52;72;92
Net Weight (kg):0.28;0.48;0.68
No. of Pôles:8
No. of Phases:3
Insulation Class:B
