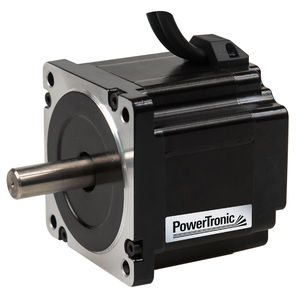

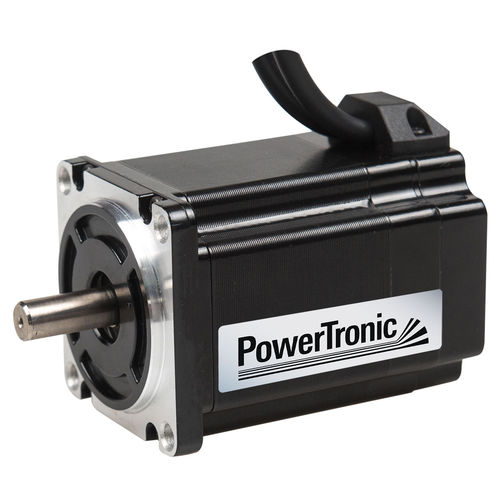

BLDC motor BL61S seriesthree-phase48 V8-pole
Add to favorites
Compare this product
Characteristics
- Type
- BLDC, three-phase
- Voltage
- 48 V
- Number of poles
- 8-pole
- Power
78 W, 156 W, 234 W
(0.11 hp, 0.21 hp, 0.32 hp)- Torque
0.25 Nm, 0.5 Nm, 0.75 Nm
(0.184391 ft.lb, 0.368781 ft.lb, 0.553172 ft.lb)- Rotational speed
3,000 rpm
(18,849.5559 rad.min-1)- Diameter
60.5 mm
(2.38 in)
Description
Additional information
Rated Voltage V:48
Rated Torque Ncm:25 / 50 / 75
Speed rpm:3000
Technical Data
ModelBL61.66SBL61.87SBL61.108S
Rated Voltage (V):48;48;48
Rated Speed (min1):3000;3000;3000
Rated Torque (Nom):25;50;75
Rated Power (W):78;156;234
Rated Current (A):2.2;4.4;6.6
Peak Current (A):6.6;13.2;19.8
Peak Torque (Nom):75;150;225
Rotor Inertia (gcm2):500;900;1300
Torque Constant (Ncm/A):11;11;11
Back EMF (V/min1):10.5;10.5;10.5
Résistance (Q):1.5;0.6;0.5
Inductance (mH):1.3;0.65;0.4
Length (mm):66;87;108
Net Weight (kg):0.9;1.25;1.6
No. of Pôles:8
No. of Phases:3
Insulation Class:B
