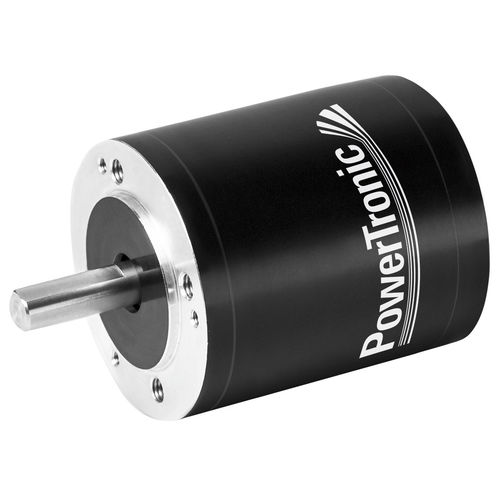

BLDC motor BL52R seriesthree-phase24 V8-pole
Add to favorites
Compare this product
Characteristics
- Type
- BLDC, three-phase
- Voltage
- 24 V
- Number of poles
- 8-pole
- Power
31 W, 63 W, 94 W
(0.04 hp, 0.09 hp, 0.13 hp)- Torque
0.1 Nm, 0.2 Nm, 0.3 Nm
(0.073756 ft.lb, 0.147512 ft.lb, 0.221269 ft.lb)- Rotational speed
3,000 rpm
(18,849.5559 rad.min-1)- Diameter
52 mm
(2.05 in)
Description
Additional information
Rated Voltage V:24
Rated Torque Ncm:10 / 20 / 30
Speed rpm:3000
Technical Data
ModelBL52.59RBL52.79RBL52.99R
Rated Voltage (V):24;24;24
Rated Speed (min1):3000;3000;3000
Rated Torque (Nom):10;20;30
Rated Power (W):31;63;94
Rated Current (A):1.8;3.6;5.4
Peak Current (A):5.4;10.8;16
Peak Torque (Nom):30;60;90
Rotor Inertia (gcm2):550;750;950
Torque Constant (Ncm/A):5.5;5.5;5.5
Back EMF (V/min1):5.82;5.81;5.81
Résistance (Q):3;1.5;0.6
Inductance (mH):2.5;1.3;0.65
Length (mm):58.5;78.5;98.5
Net Weight (kg):0.38;0.88;1.37
No. of Pôles:8
No. of Phases:3
Insulation Class:B
