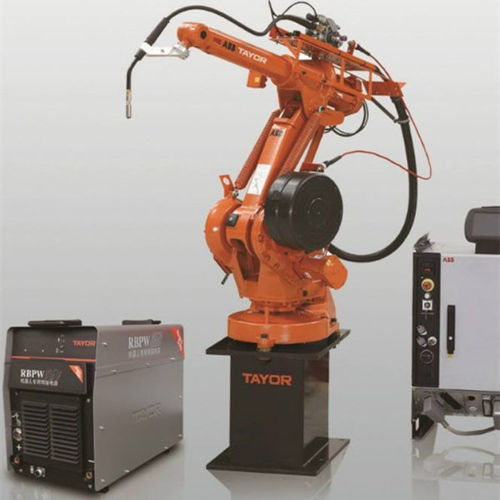

Robotic welding machine

laserbenchtopvertical

6 Axis welding robot , welding robot 6 axis Technical Parameter of Prima motor man welding robot Structure - Vertical jointed-arm type Available axis - 6 Payload - 20KG Vertical reach - 1900mm Horizontal reach - 1500mm Accuracy - ±0.15mm Weight - 120KG Brakes - All axis Power consumption - 5KVA Mounting - Floor, ceiling, wall Max motion range - S-Axis(Turning/Sweep) L-Axis(Lower Arm) U-Axis(Upper Arm) R-Axis(Wrist Roll) B-Axis(Bend/Pitch/Yaw) T-Axis(Wrist Twist) - ±170° +120°/-65° +205°/-165° ±190° ±145° ±360° Max speed - S-Axis L-Axis U-Axis R-Axis B-Axis T-Axis - 185°/s 185°/s 185°/s 360°/s 410°/s 500°/s Allowable moment - R-Axis B-Axis T-Axis - 8.0N•m 8.0N•m 3.0N•m Allowable moment inertia - R-Axis B-Axis T-Axis - 0.20kg•m² 0.20kg•m² 0.07kg•m² 1.Stable welding quality guarantee the uniformity of the product; 2.The exquisite design greatly reduce the space occupying. 3.It can improve the labor intensity. It can work under the harmful environment. 4.It can runs 24 hours, and greatly improve the production efficiency.
