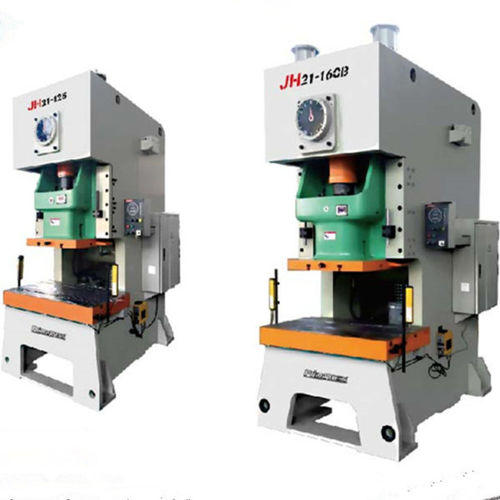

Hydraulic press JH21-25B
pneumaticelectricbending

hydraulic press
hydraulic press
hydraulic press
hydraulic press
hydraulic press
hydraulic press
hydraulic press
Add to favorites
Compare this product


Characteristics

Operation
hydraulic, pneumatic, electric
Function
bending, drawing, punching, blanking, welding
Structure
frame
Other characteristics
vertical, digital, fixed, universal
Force

250 kN

Stroke

60 mm
(2 in)

Hydraulic pump power

3 kW

Weight

2,200 kg
(4,850 lb)

Description

pneumatic Power press with wet clutch and hydraulic overload protector Open Back Press with Fixed Bed, a kind of thin sheet metal processing universal press imported advanced technology of AIDA company in Japan, which is suitable for shearing, punching, blanking, bending and shallow drawing. The structural feature is as follows: BRIEF INTRODUCTION OF STRUCTURE 1,The frame is welding with whole steel plate which has high rigidity, reasonable structure and beautiful design. 2,The press adopts the vertical crankshaft structure. The distance of fulcrum is short and the crank is rigid. Driving gear is installed into the frame and gear is immersed in oil reservoir. Customer could choose Electromagnetic governor(Wannan motor factory), which is stepless speed regulation within a certain range and enlarge the area of craft. 3,The press adopts Italy low inertia combined wet friction clutch and brake made in Shanghai OMPI, which has little passive inertia, low energy consumption, reliable interlock of clutch and brake and long longevity. 4,The slide is a whole cast form construction which adopts hydraulic overload protector made in Showa, Japan with agile and reliable action. After overload, it can reset automatically to reduce the down time and improve the availability of press. High pressure oil seal which is imported from German is installed in slide high pressure cylinder. 5,The shut height adopts electric adjustment, which has digital display. Its display is 0.10mm. The press adopts hexahedral rectangle lengthen gib, which has high guiding precision and steady precision.
