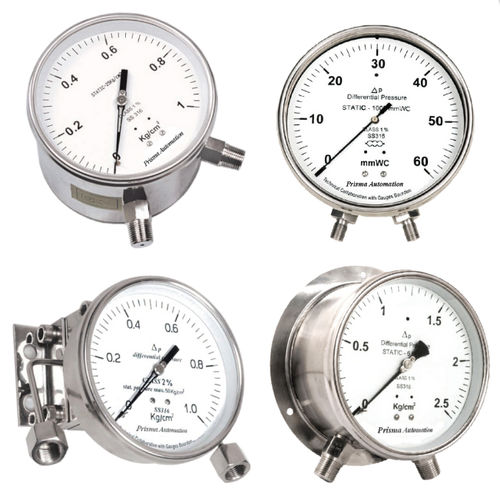

Dial pressure gauge DPG-B
differentialthreadedstainless steel

Dial pressure gauge - DPG-B - Prisma Instruments - differential / threaded / stainless steel
Dial pressure gauge - DPG-B - Prisma Instruments - differential / threaded / stainless steel
Add to favorites
Compare this product

Characteristics

Display
dial
Pressure type
differential
Mounting
threaded
Material
stainless steel
Technology
bellows
Protection level
IP67
Applications
process
Pressure

Max.: 9,806.65 Pa
(1.42 psi)

Min.: 0 Pa
(0 psi)

Precision

1 %

Dial diameter

150 mm
(5.9 in)

Process temperature

Max.: 80 °C
(176 °F)

Min.: -20 °C
(-4 °F)

Description

Bellow type construction All SS internals Screwed / Flanged connection Chemical seal unit (optional) for process suitability Microswitch type contacts as required A set of two stainless steel bellows mounted on a force balance Enables direct reading of the actual differential pressure Each bellow of the pressure Gauge can withstand the full static pressure without any damage or shifting being caused to the instrument. Main applications of the Differential Pressure Gauge - Bellow Type: Differential measurement pressure Flow and level measurement

Catalogs

DPG-B
DPG-B
2 Pages
