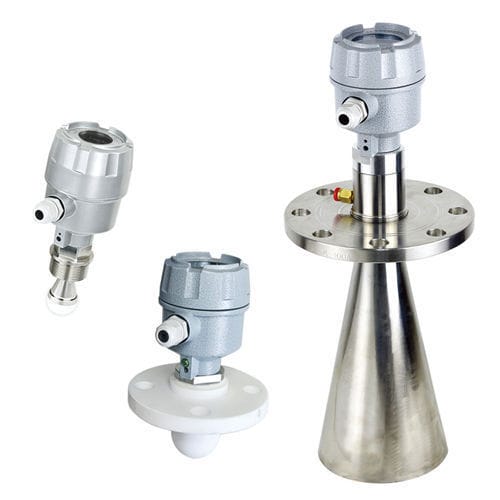

Radar level transmitter TNRP 2 series

for corrosive liquidsbulk solidsRS-485

These radar level transmitters product line designed for use measuring liquids and bulk solids in tanks, bins and silos. These radar level transmitters are designed to operate at either 26GHz and use frequency modulated continuous wave radar technology. A pulse radar level transmitter emits a high frequency signal via an antenna towards the material surface. A part of the radar energy is reflected off the material surface back to the radar level transmitter at some time delay. The difference in frequency between the transmitted signal and received signal is directly related to the distance being measured by the radar level transmitter. This frequency difference is processed by the electronics As a result the linearity and accuracy of the measurement made by the radar level transmitter is excellent, with an error rate as low as only ± 5mm. Features Non contact measuring/ 2 wires Corrosive and toxic liquid, hydrocarbons,slurries Not affected by specific gravity, pressure,temperature, viscosity, foam, and dust Indicate signal wave inside the silo Selection of Different Measurement unit(m,cm, mm, inch, Ft, %, mA) Measuring distance and actual level Language selection of traditional Chinese,simplified Chinese, English Modbus RS-485 to enhance isolation andeasy for remote control CE standards for isolation(EFT 2000V, B classor better) Suitable for mid-range signal 4mA, 20mA output Isolated circuit design 26GHz TNRP could measure all kindsof material
