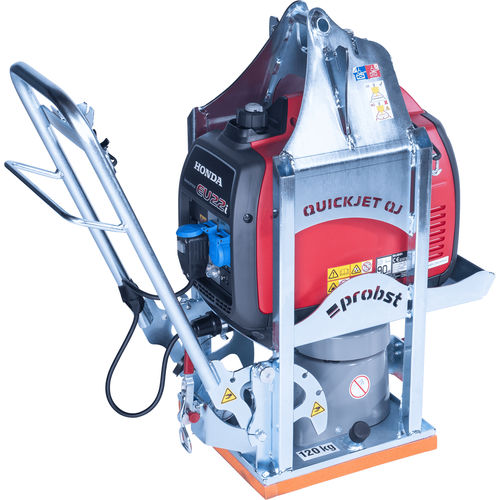

Suction slab laying machine QUICKJET QJ-600-E series

Lifts even very porous materials. For efficient and safe handling even of very porous products. The vacuum power is generated by a strong, electrically powered vacuum turbine. Besides highly porous slabs, also products with exposed aggregates and other rough surfaces can be handled safely and quickly. The compact QUICKJET QJ-600-E can be attached to any carrier by means of load hook, chains, slings etc. The vacuum lifting device comes with a fixed suction plate QJ-ESP-120-38/38 QJ – max. working load limit 120 kg (265 lbs) – and a electrical power cable with on-off switch at the plug connector. The electric generator to operate the vacuum turbine is not included, however it is available as an optional accessory. This generator can be placed in frame of the QJ. To ensure proper function of the electric turbine when powering the QJ with a generator (petrol tank empty), please be aware of the following facts: The minimum continuous power production has to be 1.600 W. Exclusively generators with modern Inverter Technology, such as Honda EU 22 i, should be used. Plug type F, 230 V. Further information • - Quick change fasteners allow for speedy attachment of different suction plates to the fixed plate QJ-ESP-120-38/38 within seconds. The different suction plates available are cover-ing versatile kinds of application, various slab sizes and weights. • - A foldable handle ensures safe and accurate positioning of the slabs to be laid. • - The integrated chain guard assures additional safe operation.
