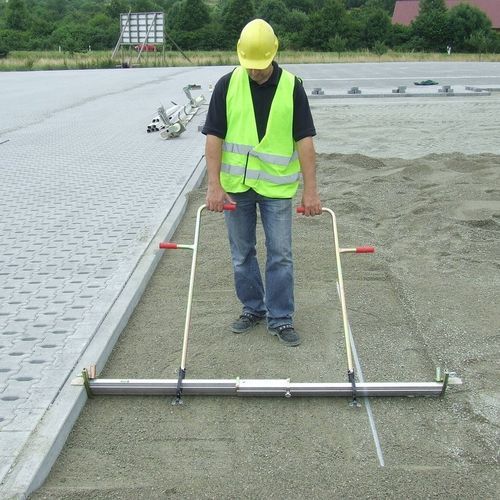

Manual screeding system TELEPLAN TP series

The new TELEPLAN TP aluminium profile is sickle shaped. As a result the profile cuts itself into the bedding material and does not move upwards! No need for executing any force to push it down when pulling. Especially when screeding compacted sand, also in case of the screed bar cannot be moved sideways sawing off the bedding material due to lateral obstacles or boundaries, the advantages of the TP profile are enormous with regard to effort of energy, working speed and high-quality performance of the laying course. Two (2) TP profiles can be connected together in order to be telescopically adjusted in a simple and sturdy way. Thus one and the same tool can be used for various working widths. Two fixed clamping units to connect both profiles, clamping units can not get lost. With height adjustable height stop on both sides, range of adjustment 0-127 mm. Can be taken off quickly if required. Further information • Intergrated fitting for additional pulling handles HG-TP included in the side parts. • One level indicator incorporated inside the TP profile. • German Patent. • The light-weight aluminium hollow profile is extremely sturdy (high-tensile material - weight is 1.3 kg per meter). • Long Lifespan.
