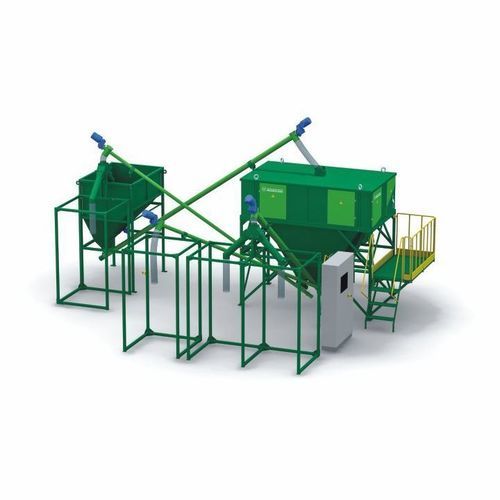

Electrostatic separator EBS-T series

dry materialsfor the recycling industryprocess

Intended for dry separation of mixture of polymers by the electrical properties, in particular: PVChard + nonconducting rubber + PVCsoft + EPDM (crushed window profile), PVC + PE (crushed cable insulation), PET + PVC (crushed PET bottles), PET + PE (food packaging, containers), ABS+PS (crushed WEEE), PP+PE (plastic bottles and caps) and other mixtures (PVC + glass, PS + PP, PS + PC, PS + SAN, ABS + SAN, ABS + PVC, PET + PP, PE + PS); extraction of diamonds from tailings of X-ray luminescence separation. * Under indoor conditions at air temperature from 5 and 40 ºC, with relative humidity of the internal environment of the separator not more than 40% and relative humidity of the product not more than 0.5%. Applied on the enterprises of: recycling (processing) - in the technological lines for processing of polymers, WEEE after shredding, drying and classification and processing of cable after the stage of metal extraction; extraction and enrichment of diamond ore. Application inndustries: Cable recycling Glass and porcelain industry Lead and zinc industry Municipal engineering Processing of plastic waste Recycling of household appliances Recycling of worn tires Recycling of worn tires Titanium-magnesium industry WEEE and PCB's recycling WEEE recycling Principle of operation: Two-component mixture of polymers (pre-crushed, dried and classified) is fed into the loading hopper, then the product falls into a special tribocharging device. In the tribocharging device particles of polymers mix, due to the numerous encounters with each other and the walls of the device, get positive and negative charges and then sorted out by electric field on the drum separator. In accordance to the sign of the charge, particles are attracted either to the precipitating electrode or to the deflecting electrode connected to the high voltage power supply. Our company will help you to choose the equipment and calculate the price based on your requirements.
