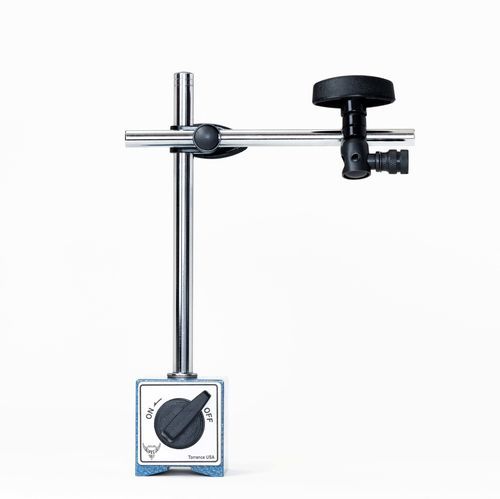

Universal holder 8612 series

steeladjustableprecision

Description
PEC magnetic bases provide stable, accurate support for dial and test indicators in machining, inspection, and alignment work. Built from premium steel with a strong magnetic grip, each model is designed for reliable positioning and repeatable setups.

Features

• Stable magnetic base for precise indicator support
• Constructed from premium steel for durability
• Strong magnetic grip suitable for machining, inspection and alignment
• Accepts 6 mm stems, 3/8" stems, and dovetail clamps

Variants / Configurations

• Standard: Reliable steel arms and durable housing for everyday use; accepts 6 mm stems, 3/8" stems, and dovetail clamps.
• Fine Adjustment: Premium steel arms with a smooth control knob for precise positioning; compatible with 6 mm stems, 3/8" stems, and dovetail clamps.
• Flexible Arm: Gooseneck design allows quick repositioning in tight or complex setups; holds 3/8" stems and dovetail mounts, ideal for bore gauges.
• Universal Arm: Multi-angle positioning with a mechanical lock for fast, repeatable setups; fits 6 mm stems, 3/8" stems, and dovetail mounts.
• Premium Universal Arm: Heavy-duty steel arms with universal flexibility and one-touch joint locking; supports 6 mm stems, 3/8" stems, and dovetail mounts.

Notes
Country of Origin: China

Specifications

• Part Number (example on page): 8612-120
• Material: Premium steel (housing and arms)
• Compatibility: Accepts 6 mm stems, 3/8" stems, and dovetail clamps/mounts
• Magnetic force options: 80 kg / 176 lbs (primary), 100 kg / 220 lbs (option)
• Dimensions (examples): 50 x 58 x 55 mm (2" x 2-1/4" x 2-3/16") and 50 x 73 x 55 mm (2" x 2-7/8" x 2-3/16") depending on variant
• Available configurations: Standard, With Fine adjustment, With Adjustable Clamping Hole, Universal Arm with Mechanical Locking System, Flexible Arm, Universal Arm Premium Heavy Duty
