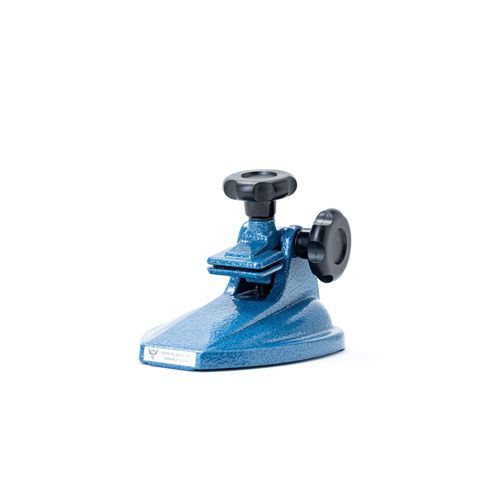

Measurement stand 8613-110

Overview
Stable stand engineered for precise support of 0-4" outside, digital and depth micrometers in machining, inspection and workshop environments. Designed to improve repeatability and operator comfort during measurement tasks.

Features

• Compatible with 0-4" micrometers: Securely holds most outside, digital and depth micrometers within the 0-4" measuring range.
• Durable cast iron construction: Solid cast iron body with a non-toxic, international standard-compliant powder coating for corrosion resistance.
• Non-slip rubber pad: Protective base pad prevents scratches and reduces movement to maintain consistent readings.
• Adjustable positioning: Dual fastening points and a smooth rotating head enable multiple angle settings for ergonomic use.
• Clamp opening capacity: Accepts micrometer frames up to 3/4" (18 mm) thick for a wide range of tools and applications.
• Country of origin: China.

Part Number
Part #: 8613-110

Technical specifications

• Intended measuring range: 0-4" micrometers (outside, digital, depth)
• Construction material: Solid cast iron body
• Finish: Non-toxic powder coating (international standard compliant)
• Base: Protective non-slip rubber pad to prevent scratches and reduce movement
• Positioning: Dual fastening points; smooth rotating head for multiple angle settings
• Clamp opening capacity: up to 3/4" (18 mm) frame thickness
• Part number: 8613-110
• Country of origin: China
