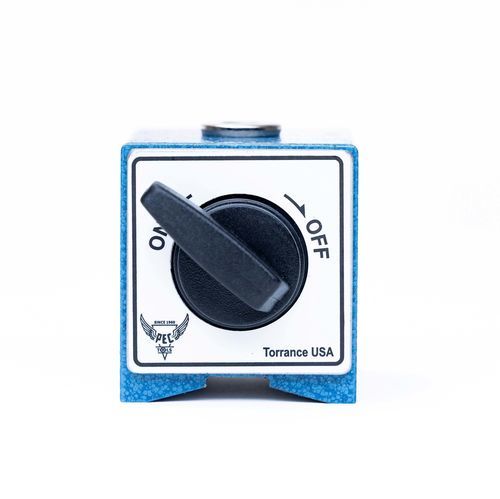

Switch magnetic base 8610 series

Switch magnetic base - 8610 series - Products Engineering Corporation (PEC Tools)
Switch magnetic base - 8610 series - Products Engineering Corporation (PEC Tools)
Switch magnetic base - 8610 series - Products Engineering Corporation (PEC Tools) - image - 2
Switch magnetic base - 8610 series - Products Engineering Corporation (PEC Tools) - image - 3
Switch magnetic base - 8610 series - Products Engineering Corporation (PEC Tools) - image - 4
Switch magnetic base - 8610 series - Products Engineering Corporation (PEC Tools) - image - 5
Switch magnetic base - 8610 series - Products Engineering Corporation (PEC Tools) - image - 6
Switch magnetic base - 8610 series - Products Engineering Corporation (PEC Tools) - image - 7
Switch magnetic base - 8610 series - Products Engineering Corporation (PEC Tools) - image - 8
Switch magnetic base - 8610 series - Products Engineering Corporation (PEC Tools) - image - 9
Switch magnetic base - 8610 series - Products Engineering Corporation (PEC Tools) - image - 10
Add to favorites
Compare this product

Characteristics

Specifications
Switch

Description

Product overview
  • Magnetic base with integrated ON/OFF switch for rapid engagement and release of magnetic holding force.
  • Designed for holding, fixturing and measurement setups in industrial environments.
  • Country of origin: China.


Features
  • Manual ON/OFF switch for immediate activation/deactivation of the magnet.
  • Multiple magnetic force ratings to match different holding requirements.
  • Several dimensional and thread-size configurations for compatibility with indicators, stands and tooling.


Available variants
  • Variant id 50969608782111 — Magnetic Force: 35kg / 77lbs; Dimension: 30x36x35mm (1-3/16" x 1-7/16" x 1-3/8"); Thread size: M5x0.8; (Part #: 8610-035).
  • Variant id 50969608814879 — Magnetic Force: 50kg / 110lbs; Dimension: 40x40x40mm (1-9/16" x 1-9/16" x 1-9/16"); Thread size: M6x1.
  • Variant id 50969608847647 — Magnetic Force: 80kg / 176lbs; Dimension: 50x58x55mm (2" x 2-1/4" x 2-3/16"); Thread size: M8x1.25.
  • Variant id 50969608880415 — Magnetic Force: 100kg / 220lbs; Dimension: 50x73x55mm (2" x 2-7/8" x 2-3/16"); Thread size: M8x1.25.
  • Variant id 50969608913183 — Magnetic Force: 130kg / 286lbs; Dimension: 50x117x55mm (2" x 4-5/8" x 2-3/16"); Thread size: M10x1.25.


Notes
  • Part #: 8610-035 is shown on the product page as the default SKU.


Characteristics / Technical specifications
  • Brand: PEC Tools.
  • Commercial name: Magnetic Base with ON/OFF switch.
  • Part number / example SKU: 8610-035.
  • Magnetic force options: 35kg (77lbs), 50kg (110lbs), 80kg (176lbs), 100kg (220lbs), 130kg (286lbs).
  • Dimensions by variant: 30x36x35mm; 40x40x40mm; 50x58x55mm; 50x73x55mm; 50x117x55mm (imperial sizes shown on page).
  • Thread sizes by variant: M5x0.8, M6x1, M8x1.25, M10x1.25.
  • Included feature: ON/OFF switch.
  • Country of origin: China.
  • Displayed price (per unit): 24.90 USD.
