Dynamic mixer DMU series

continuoussolid/liquidfor the food industry

Overview

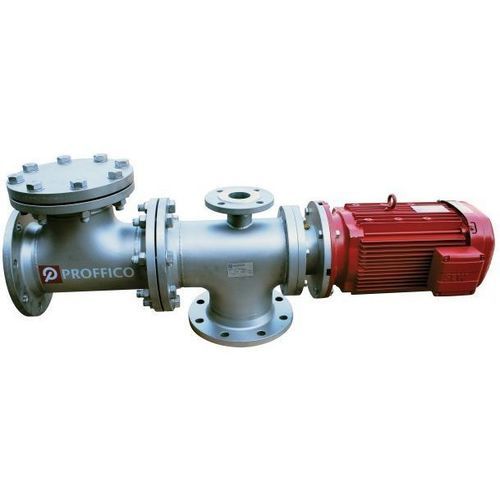

The Proffico DMU dynamic mixers are continuous in-line units for homogenizing sludge with flocculants/polymers and other viscous media. Constructed from corrosion-resistant materials (standard: stainless steel) and driven by reliable SEW gearmotors, DMU mixers provide adjustable high mixing energy while remaining compact. The special triangular (shark fin) shape of the mixing elements prevents clogging. Units are available in three series covering sludge flows up to 100 m³/h. Fully enclosed design ensures safe operation without hazardous fumes or odors.

Scope of application
Suitable for sludge dewatering installations, sewage and water treatment plants and for processes in the chemical, pharmaceutical and food industries where continuous high-energy mixing is required.

Main advantages

• Operates with highly concentrated substances
• Mixing elements shaped to eliminate risk of clogging (triangular shark fin)
• Multi-variant construction with rotatable flanges (lateral and coaxial)
• Low pressure drop while maintaining high mixing efficiency
• Easy to clean thanks to removable inspection flanges
• Compact dimensions for installation in confined spaces

Technical specifications

• Type / series: DMU
• Manufacturer / brand: Proffico
• Standard material: stainless steel (corrosion and aggressive media resistant)
• Drive: SEW gearmotors (efficient and reliable)
• Available in three series for sludge flow up to 100 m³/h
• Mixing elements: triangular (shark fin) profile to prevent clogging
• Construction: rotatable flanges (lateral and coaxial)
• Design: fully enclosed for safe operation (no hazardous fumes/odours)
• Maintenance: removable inspection flanges for easy cleaning
• Applications: sludge dewatering, sewage and water treatment, chemical, pharmaceutical and food industries
