Heavy load lifting bag CLC

connectable

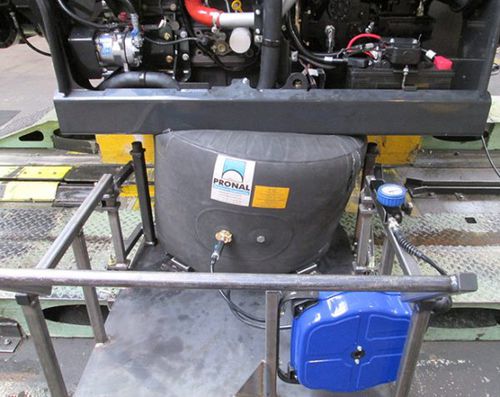

CLC – Cylindrical Lifting Cushions take a cylindrical shape under pressure. Deflated, they take up very little space, making it easy to insert them into place. This typical inflatable jack offers a significant lifting height of up to 1 metre for loads of up to 12 tons. They are used to hold or lift heavy loads like cars, trucks, farm equipment or small aircraft. They are the ideal solution for working on rough terrain. The wide contact surface area spreads the lifting load over a wider area without damaging it. The accessories that are specific to this range allow safe inflation up to 1 bar. A number of models are available (see table below). APPLICATIONS Stabilising and shimming machinery during handling ADVANTAGES Use •Minimum 50 mm insertion height •Lifting height of up to 1000 mm •Operate at low 1 bar pressure Safety •Safety factor of 3 •Smooth, jerk-free lifting Handling •Light and easy to carry •Handling straps DETAILED INFORMATION •Material: NPVC coated •Manufacturing technique: cold vulcanisation •Dimensions: diameter of 610 to 1220 mm / Height of 430 to 1000 mm •Inflation: air •Temperature resistance: -20 to 60°C •Max. inflation pressure: 1 bar •Test pressure: 1 bar •Flat thickness: 50 mm •Lifting travel: 1000 mm •Safety factor: 3
