Inflatable seal
silicone rubberdoorfor medical applications

inflatable seal
inflatable seal
inflatable seal
inflatable seal
inflatable seal
inflatable seal
inflatable seal
inflatable seal
inflatable seal
Add to favorites
Compare this product


silicone rubber
door, for medical applications, thermal insulation, for the petrochemical industry, for the petroleum industry, for specific applications, for leak detector, for shafts, for mechanical components, for food industry machinery, for food products, construction, for electronic applcations, surface roughness, industrial, for general purposes, for hazardous areas, for medical equipment, for medical packaging, for agricultural machinery, for the food and beverage industry, filling, for the pharmaceutical industry, for aircraft, for doors, for machines, axial pressure, for home appliances, for food contact, for heating systems
Other characteristics
dynamic, static, high-temperature, flexible, custom-made, large, inflatable, vulcanized
Temperature limit

Max.: 300 °C (572 °F)

Min.: -60 °C (-76 °F)

Pressure limit

Max.: 6 bar (87 psi)

Min.: 0 bar (0 psi)

Shore A hardness

Max.: 70 unit

Min.: 40 unit

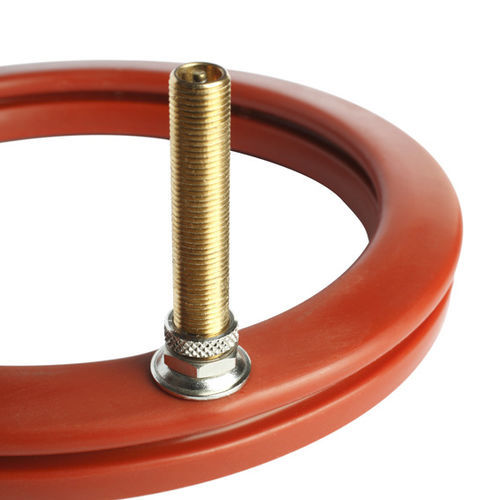

The inflatable seal is a very versatile product that finds many applications and mainly responds to a common problem: the sealing and insulation of mechanical parts moving between them, and presenting a significant gap to be covered. To meet this need, we manufacture the range of inflatable and retractable TIXAN'AIR® pneumatic seals to solve the multiple problems of static or dynamic sealing in industries as diverse as aeronautics, marine, nuclear, medical engineering, chemical engineering, agri-food, railway or mechanics. Our TIXAN’AIR® range made up of many profiles will allow us in most cases to offer a tailor-made solution with an existing model. For the most specific cases, we develop and manufacture the necessary tools according to your specifications and requirements. Our machining capabilities will allow us to manufacture the connection valve adapted to the application or to offer one of our standards. Our experience allows us to provide high quality inflatable seals and depending on the requirements of the application, we have the necessary means to offer the tests guaranteeing their resistance, such as pressure rupture tests, longevity tests in action (number of supported cycle). Our inflatable seals are made of various silicone mixtures, the latter adapting to the sector and corresponding standards, such as the need to comply with fire-smoke standards for railways, or the need for a material suitable for contact wi
