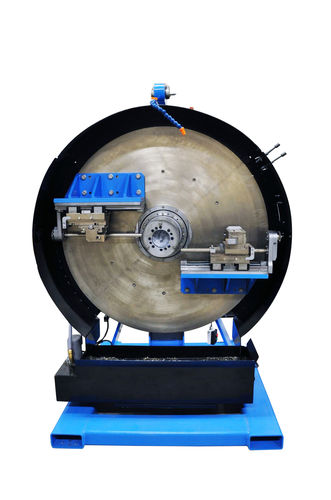

Heavy Duty beveler PROTEM US600-R
For Diameters from 600 to 1500 mm
It is designed to perform bevels on rough tube by using standard carbide in-serts and can easily perform bevelling jobs on wall thicknesses up to 4" wall pipe. The machine is hydraulically driven and connected to a 30 kW power pack.
Accuracy is the keyword of the Protem US600-R whether for the clamping or for the bevel geometry.
Advantages
Transportable
Wide size range
For heavy wall thicknesses
Copying carriage available for custom bevels
High bevelling accuracy
Clamping accuracy with the spider clamping kit
Premium weld end preparation
Powerful hydraulic supply
Easy to use
Reliable machine in any condition thanks to a basic design
Versatile
Modular design
Safe use on site and in your workshop
Special copying carriage
The Protem US600-R main feature is its copying carriage, with which the US600-R is able to perform any type of weld preparation like I-bevel, J-bevel, V-bevel, compound be-vel etc with accuracy and repetability. The US600-R can also machine any type of mate-rial like carbon steel, stainless steel, alloy, inconel, duplex or superduplex.
