Facing beveling machine SE90NG

electricpneumaticportable

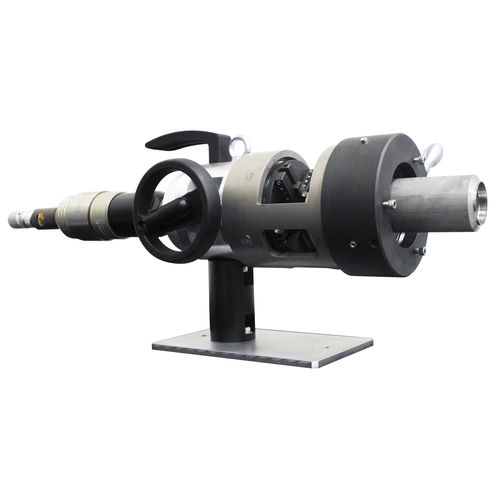

The pneumatic or electric powered Tube & Pipe end preparation machine PROTEM SE90NG is lightweighted and portable. It will perform repeatable perfect quality weld preps on all metal tubes and pipes including mild, stainless steel, exotic alloys such as inconel, P91, hastelloy, copper etc.. The SE90NG allows to cover diameters ranging from 0.393“ to 3.543“ (10mm-90mm). The cutting head will face, bevel and counterbore individually or in a simultaneous operation. The tool-holder plate can hold up to 4 tool blocks. The tool-holder plate is easily removable and thus allows the operator to save time once the tool blocks have been adjusted by exchanging the whole plate. The SE90NG machine is available with either pneumatic or electric (230 V or 110 V) drives. It clamps to the tubes and pipes by means of a heavy clamping collet and thus provides a chatterfree accurate finish. Standard Capacity: 10mm - 90mm (0.393“-3.543“)
