Handheld pipe cutter TTS-NG-series

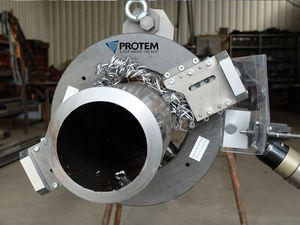

The PROTEM TTS-NG-series allows accurate cutting and/or bevelling of tubes and pipes of all schedules from 10,3 mm up to 273 mm OD in one simultaneous operation. Their reduced weights and overall dimensions enable these machines to work where there is a shortage of space. The special design of the machines shows in the following characteristics: - Split frame configuration: opening in two half-shells - Manual clamping using 4 independent adjustable jaws - Rear centering feature Technical Features Machining and clamping capacity 10,3 mm OD bis 219 mm OD (1/8" - 8" OD) Clamping manual with key Feed automatic with clutch
