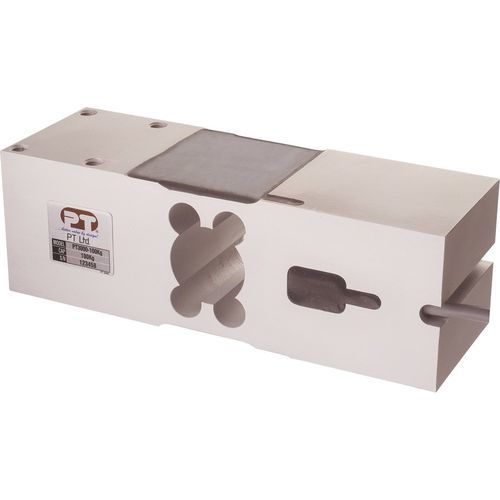

Single-point load cell PT3000 series

strain gaugeweighinghigh-precision

Having a high number of specific capacities and low sensitivity to off-center loading allows better selection for accuracy in high speed weighers, check weighers, hopper scales & net weighers. Available in 9 capacities from 50kg to 635kg with a maximum platform size of 600mm x 600mm. This is a perfect load cell for the light to medium bench and platform scale market. Used extensively in process weighing, check weighing, bag filling and overhead track weighing. The PT3000 is a robustly constructed marine grade anodised cell with SURESEAL protection to IP66. APPLICATIONS - Bench & platform scales - Check weighers & bag fillers - Process weighing FEATURES - Marine grade anodised finish - Protected with - Compact size, metric thread - Generous platform sizes to 600mm x 600mm SPECIFICATIONS • Nominal Capacity : 50kg ~ 635kg • Signal Output at Capacity : 2mV/V ± 10% • Linearity Error : < 0.020% FSO • Non-Repeatability : < 0.010% FSO • Combined Error : < 0.025% FSO • Hysteresis : < 0.015% FSO • Creep/Zero Return (30 mins) : < 0.030% / 0.020% FSO • Zero Balance : < 3.000% Capacity • Temperature Effect On Span/10°C : < 0.010% FSO • Temperature Effect on Zero/10°C : < 0.015% Capacity • Compensated Temperature Range : - 10 ~ 40°C • Operating Temperature Range : - 30 ~ 70°C • Service Load : 100% of Rated Capacity • Safe Load : 150% of Rate Capacity • Ultimate Load : 250% of Rated Capacity • Excitation +ve : RED • Signal +ve : GREEN
