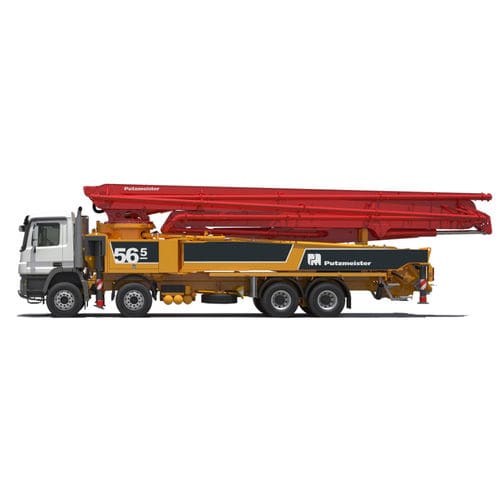

Mobile truck-mounted concrete pump BSF 56-5

for industrial applicationsoutdoorfor construction

Product Overview
The Putzmeister BSF 56-5 truck-mounted concrete pump is ideal for industrial or high-rise building projects which require large radius of distribution and high performance. The BSF 56-5 is compact, reliable, easily manageable, and economical. As an option this truck-mounted concrete pump can be mounted on a 4 axle (for countries outside of Europe) or 5 axle chassis of various manufacturers.
The new fully flexible outrigger gives you all the freedom you need when space on the construction site is tight again.
Link to Reach Forecast App for BSF 56-5 with Ergonic3 (EU Version).

Key Features

• Longlife design for tough jobs - industry leader with light steel design
• Maximum safety through closer consideration for current standards and guidelines
• Service-friendly as a result of its optimised accessibility and consistent bolted concept
• Minimal service costs thanks to maintenance-free components
• Longest steel boom on 4 axles

General Information

• Unfolding Height: 27 "
• Rotation: B0
• End Hose Length max.: 27 "

Configuration / Variants

• Concrete Pump Cell .19 iLS (active)
  • Material Cylinder Diameter - Stroke Length: 10/83 "
  • Output (piston side): 254 ydB3/hr
  • Delivery Pressure (piston side): 1233 psi
  • Strokes (piston side): 31
• Concrete Pump Cell .17 iLS
  • Material Cylinder Diameter - Stroke Length: 10/83 "
  • Output (piston side): 222 ydB3/hr
  • Delivery Pressure (piston side): 1233 psi
  • Strokes (piston side): 28
• Concrete Pump Cell .16 H
  • Material Cylinder Diameter - Stroke Length: 9
  • Output (rod side): 209 ydB3/hr
  • Output (piston side): 141 ydB3/hr
  • Delivery Pressure (rod side): 1233 psi
  • Strokes (rod side): 31 (per minute)

Caractéristiques / spécifications techniques

• Model: BSF 56-5
• Type: Compact Truck-Mounted Concrete Pump with 5-Section Boom
• Mounting options: 4-axle or 5-axle chassis (various manufacturers)
• Outrigger: fully flexible outrigger for tight construction sites
• Material cylinder diameter / stroke (variants): 10/83" (iLS .19 / .17), 9 ( .16 H )
• Maxoretical output examples: 254 ydB3/hr (Concrete Pump Cell .19 iLS piston side), 222 ydB3/hr (.17 iLS piston side), 209 ydB3/hr ( .16 H rod side), 141 ydB3/hr (.16 H piston side)
• Delivery pressure examples: 1233 psi (listed for piston and rod sides in variants)
• Strokes examples: up to 31 strokes (variant dependent)
