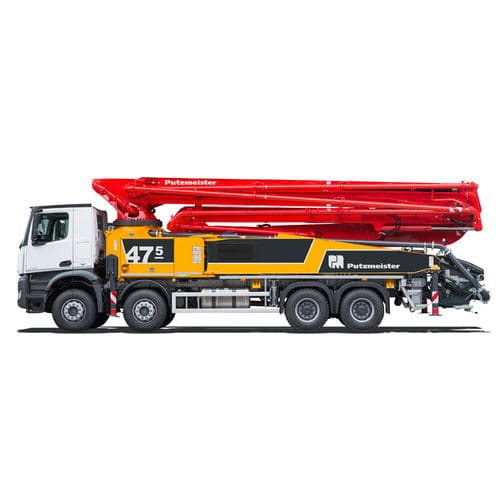

Mobile truck-mounted concrete pump BSF 47-5

outdoorfor constructionpiston

Overview
Fully flexible top-performance package on four axles. Weighing less than 32 tonnes* the BSF 47-5 truck-mounted concrete pump is one of the lightest machines in its class. It is suitable for medium to large sites and for job sites with challenging setup conditions.

Support options
Different small support options available: Europe: iSC with permanent check of permitted arm positions and working ranges. Outside Europe: OSS (One Side Support).

Operation
The new fully flexible outrigger combined with the intuitive Ergonic 3.0 control provides maximum freedom when space on the construction site is limited.

Key Features

• Smooth 5-section boom with Roll Z-Folding
• TRDI support for compact support area, fast setup and relief of the chassis (iSC and OSS optional)
• Efficient operation with Ergonic 3.0 control system
• Reduced service costs
• Boom tip load 160 kg

General Information

• Model: BSF 47-5
• Brand: Putzmeister
• Number of boom sections: 5
• Boom style: RZ
• Vertical reach: 46.1 m
• Horizontal reach: 41.1 m
• Unfolding height: 11.1 m
• Max end hose length: 3 m
• Delivery line (diameter): DN 125
• Boom tip load: 160 kg
• Main available pump configurations: .19 iLS, .17 iLS, .16 H
• Operating system: Ergonic 3.0

Configuration - Technical attributes

• Concrete Pump Cell .19 iLS
  • Material cylinder diameter - stroke length: 250/2100 mm
  • Output (piston side): 190 m³/h
  • Delivery pressure (piston side): 85 bar
  • Strokes (piston side): 31
• Concrete Pump Cell .17 iLS
  • Material cylinder diameter - stroke length: 250/2100 mm
  • Output (piston side): 170 m³/h
  • Delivery pressure (piston side): 85 bar
  • Strokes (piston side): 28
• Concrete Pump Cell .16 H
  • Material cylinder diameter - stroke length: 230/2100 mm
  • Output (rod side): 160 m³/h
  • Output (piston side) (max. theoretical): 108 m³/h
  • Delivery pressure (rod side): 85 bar
  • Strokes (rod side) per minute: 31

Notes
*Depending on vehicle and equipment
