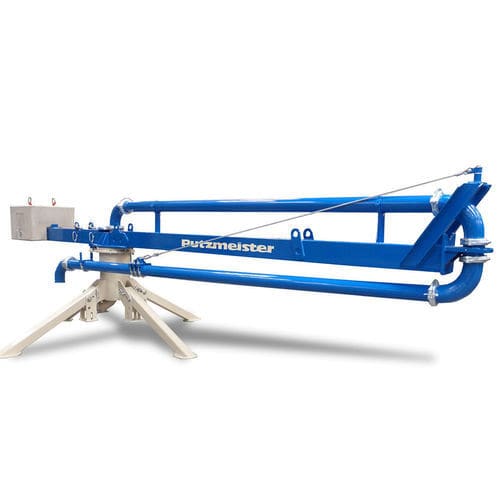

Concrete placing boom RV 10

Product overview
The RV 10 rotary distributor is a rotating concrete placing device designed to distribute concrete over large areas and floors that cannot be reached by truck-mounted pumps. It is suited to slab and floor pours, column concreting, tunnel works and precast element production, and can replace stationary booms or extended delivery lines when wide coverage from a single fixed location is required.

Key Features

• Designed for large areas and floor pours
• Concrete areas of any size can be prepared for construction with the aid of a tower or mobile crane
• Compact dimensions facilitate transport and on-site handling
• Up to 320 m² (383 yd²) can be concretized from one fixed location

Technical specifications

• Number of sections: 2
• Horizontal reach: 10 m (32'10")
• Placing area: 320 m² (383 yd²)
• Delivery line: DN 125 (5")
• Weight (without concrete): 1020 kg (2249 lbs)
• Length x Width x Height: 7.10 x 1.00 x 1.80 m (23'4" x 3'3" x 5'11")
