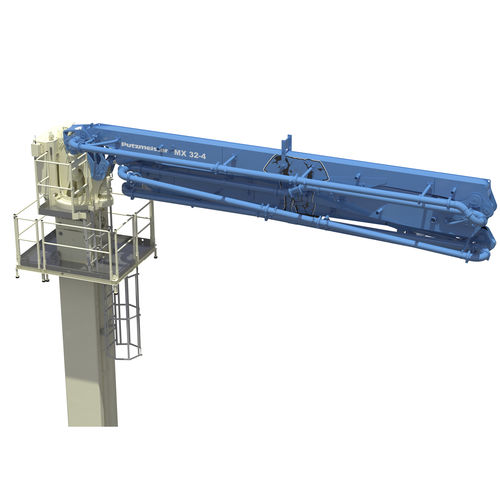

Concrete placing boom MXR 32-4

Overview
Designed for placing concrete on large civil and industrial projects, the MXR 32-4 stationary placing boom is suitable for power stations, caverns, LNG tanks, bridges and high-rise construction sites. Its lightweight design facilitates transport across sites and enables use in climbing formwork, autonomous floor-climbing and free-standing installations. The compact slewing head without stationary parts supports secure operation and the use of low-maintenance standard components reduces service costs.

Compatibility
Compatible with the Putzmeister RS 850 tubular column system.

Key Features

• -10° inclination of the first arm for increased horizontal/depth reach
• Large working platform for easy access and assembly space
• Reduced oil volume for lower environmental impact
• Flexible Z folding compatible with Putzmeister delivery line DN 125/5.5
• Quick-release hinge technology for fast and simple boom/pedestal assembly

General Information

• Rotation: not specified
• End hose length (max): 7' (approx. 2.13 m)
• Boom weight: not specified
• Pedestal weight: not specified

Configuration / Variants

• RS 850 Tubular Column 29' 6" (9.00 m): Length 29' 6"; Weight 9900 lbs (approx. 4490 kg) with pipe
• RS 850 Tubular Column 19' 7" (6.00 m): Length 19' 7"; Weight 6142 lbs (approx. 2787 kg) with pipe
• RS 850 Tubular Column 9' 8" (3.00 m): Length 9' 8"; Weight 3596 lbs (approx. 1631 kg) with pipe
• RS 850 Climbing Column 34' 5" (10.50 m): Length 34' 5"; Weight 2846 lbs (approx. 1291 kg) with pipe
• RS 850 Climbing Column 5' 0" (1.50 m): Length and Width shown as 7' (approx. 2.13 m); Weight not specified (square)

Documents & Media (available)

• MX Stationary Booms Brochure (EN)
• MX Stationärmäste Prospekt (DE)
• MX Mâts Stationnaires Brochure (FR)
• MXR 32-4 Typenblatt (DE) - spec sheet
• MXR 32-4 Data Sheet (EN) - spec sheet

Technical specifications

• Model: MXR 32-4
• Compatible column system: Putzmeister RS 850 tubular column system
• Delivery line compatibility: Putzmeister DN 125/5.5
• End hose length (max): 7' (approx. 2.13 m)
• Rotation: not specified
• Special features: -10° first arm inclination; compact slewing head without stationary parts; quick-release hinge technology; low-maintenance standard components
