Concrete placing boom RV 12

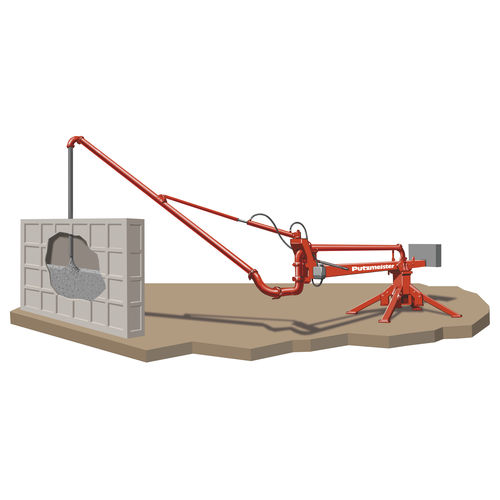

Product description Designed for larger construction sites, the RV 12 Lift concrete placing boom provides vertical movement of the last boom section, enabling concrete placing for columns and other vertical elements. The last section is raised by a hydraulic hand pump and delivers a vertical reach of 4 m. Suitable for concreting slabs, walls and columns up to 4 m and for filling small moulds in pre-cast factories.

Key Features

• Adjustable height using hydraulic hand pump
• Vertical reach of the last boom section: 4 m
• Optional bolt-on feet increase height by 0.5 m

General InformationNumber of sections: 2
Horizontal reach: 12 m
Placing area: 450 m²
Delivery line: DN 125
Weight (without concrete): 2600 kg
Dimensions (L x W x H): 9100 x 1300 x 1800 mm

Technical specifications

• Operation: last section lifted via hydraulic pump
• Applications: concreting slabs, walls and columns up to 4 m; pre-cast factory mould filling
• Delivery line diameter: DN 125
