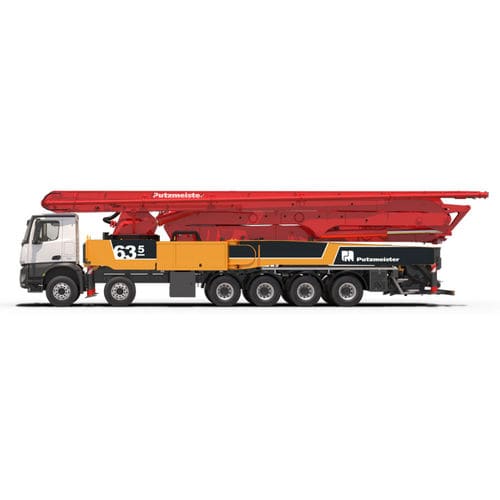

Truck-Mounted Concrete Pump with a Flexible 63m Vertical Reach, RZ-Folding 5-Section Boom
The Putzmeister M 63-5 truck-mounted concrete pump features a flexible five-section distribution boom with a vertical reach of 63 meters and a low unfolding height. It is ideal for large construction sites and those with difficult setup requirements.
Key Features
Max. output of 190 cubic meters per hour
Flexible 5-section boom with RZ-folding
TRDV-Support, flexible setup due to OSS (One Side Support)
6-axle chassis for optimal load distribution
Technical Details
General Information
Arms
5
Folding Type
RZ-Folding
Vertical Reach
62.1 m
Horizontal Reach gross
58.1 m
Horizontal Reach net
53.4 m
Reach Depth
46.3 m
Unfolding Height
23 m
Slewing Range
365 degree
End Hose - Length
3 m
Delivery Line (DN, Pressure)
DN125/117 / 85 mm/bar
Support width Standard (front-rear)
12.4 / 12.2 m
Support width OSS (front-rear)
7.5 / 8.3 m
Support width ESC (front-rear)
7.5 / 7.6
