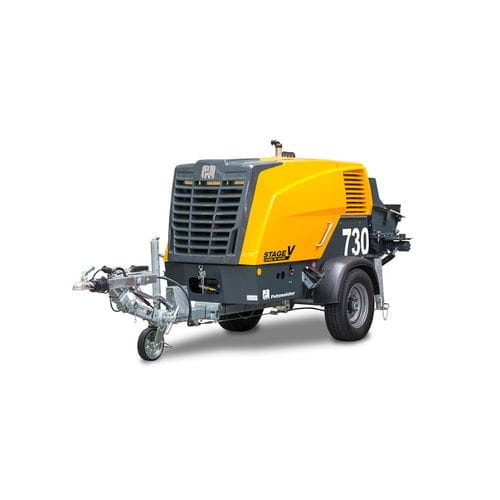

Trailer-mounted concrete pump P 730
for constructiondieselpiston

trailer-mounted concrete pump
trailer-mounted concrete pump
Add to favorites
Compare this product


Characteristics

Configuration
trailer-mounted
Applications
for construction
Type of fuel
diesel
Other characteristics
piston
Output

Max.: 30 m³/h
(1,059.4 ft³/h)

Min.: 3 m³/h
(105.9 ft³/h)

Pumping pressure

55 bar
(797.7 psi)

Power

55.4 kW
(75.3 hp)

Width

1,592 mm
(63 in)

Length

4,810 mm
(189 in)

Height

1,983 mm
(78 in)

Weight

2,450 kg
(5,401 lb)

Description

The most powerful compact pump for high delivery rates in a new design The P 730 piston pump is ideally suited for conveying fine concrete up to a grain size of 32 mm and for working with shotcrete. It is our most powerful machine of this kind – boasting even more power and a higher delivery rate – while being lightweight with a well thought-out and user-friendly design. In addition, it is easier to service and requires less maintenance than ever before. Key Features New and ergonomic central control unit with intuitive keypad on the right side of the machine Larger hopper (360 l) with rubber collar and protective grille Support feet to ensure stability More power and higher delivery rate Comprehensive standard equipment Optimised fuel consumption with Ergonic® Output Control (EOC) Improved accessibility for maintenance points and reduced service requirements when using maintenance-free components Brand-new engine technology – clean and efficient. Meets all requirements of the applicable “Stage V” emissions standard Extremely robust piston pump unit Made in Germany
