Trailer-mounted concrete pump BSA 1005 iONTRONfor constructionelectric
Add to favorites
Compare this product
Characteristics
- Configuration
- trailer-mounted
- Applications
- for construction
- Other characteristics
- electric
- Output
47 m³/h
(1,659.8 ft³/h)- Pumping pressure
55 bar
(797.7 psi)- Power
40 kW
(54.4 hp)- Width
1,694 mm
(67 in)- Length
7,125 mm
(281 in)- Height
2,113 mm
(83 in)- Weight
3,500 kg
(7,716 lb)
Description
The BSA 1005 iONTRON is the new all-electric trailer concrete pump of just under 61 yd³ (50 m³/hr) delivery rate from Putzmeister. It can be charged with a wide range of currents and plug types. Max. 22 kW with Type2 plug.
Charging of the battery and simultaneous pumping of concrete is possible.

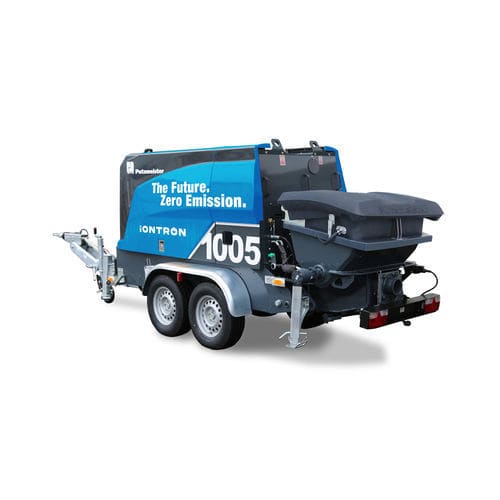

Rendering shows the machine with optional F80 chassis. The BSA 1005 IONTRON comes with an F8 chassis as standard.
Key Features
Quiet
Environmentally friendly
Saves CO2
