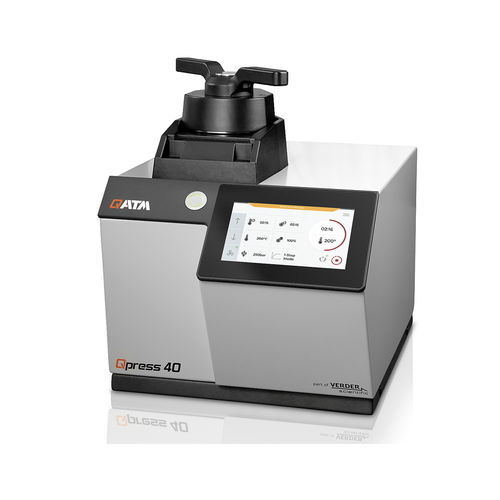

Hot mounting press Qpress 40

hydraulicfor metallographic sampleslaboratory

Overview
The Qpress 40 is a hot mounting press designed for accelerated mounting workflows in laboratory and production environments. It combines speed-optimized heating/cooling control, a bayonet quick-release closure and a 7-inch industrial touchscreen for clear parameter setting. An integrable, patented Dust Guard extraction system is available to reduce granulate dust during filling.

Product advantages

• Shorter mounting cycles (up to 35% time savings)
• Bayonet quick-release closure for fast mould access
• 7-inch industrial touchscreen with intuitive control software and optional one-button (Butler) operation
• Dust Guard: extraction of granule dust during filling (patented, optional)
• Compact powder-coated metal enclosure
• High sample throughput via double mounting (tall press cylinder)

Key features

• Speed-optimized heating and cooling technology for fast temperature control and optimized heat transfer between heaters and mould
• Adjustable temperature range 20–200 °C with preheating function
• Removable mould, suction nozzle and two plungers for simplified cleaning and maintenance
• Tall press cylinder supports double mounting (two samples stacked) to increase throughput and reduce energy per sample
• Hydraulic drive (0.36 kW) with heating capacity 1.6 kW and connected load 2.0 kW
• Heating/cooling times adjustable 0–30 min in 15 s steps; mould diameters: Ø25 / Ø30 / Ø40 mm (also shown in inches)

Software
Two software variants are available: GO (standard) and PLUS (advanced). GO provides straightforward parameter setting and process start. PLUS adds the Butler one-button function, a method database with preinstalled consumable-specific recipes, automated control of the Dust Guard extraction and a 2-step mode for sensitive samples.

Software comparison (summary)

• Touchscreen parameter setting: GO / PLUS
• Speed-optimized temperature control: GO / PLUS
• Double mounting: GO / PLUS
• User account control & status bar: GO / PLUS
• Adjustable cooling capacity & automatic descaling: GO / PLUS
• Butler one-button operation: PLUS only
• Dust Guard software control: PLUS only
• Method database & 2-step mode: PLUS only

Mounting workflow (typical)

• Place sample(s) in mould
• Fill mould with mounting resin or granulate
• Lock bayonet quick-release closure
• Start cycle via GO or PLUS (Butler if configured)
• After cycle, open closure and remove hardened sample

Technical specifications

• Mould diameters: Ø25 mm, Ø30 mm, Ø40 mm (Ø1", Ø1¼", Ø1½")
• Maximum pressure in Ø40 mm mould: up to 250–350 bar (depending on configuration)
• Temperature range: 20–200 °C
• Hydraulic drive power: 0.36 kW
• Heating capacity: 1.6 kW; connected load: 2.0 kW
• Heating/cooling time range: 0–30 min (15 s steps)
• Dimensions (W×H×D): ~365 × 433 × 538 mm; Weight: ~41 kg
