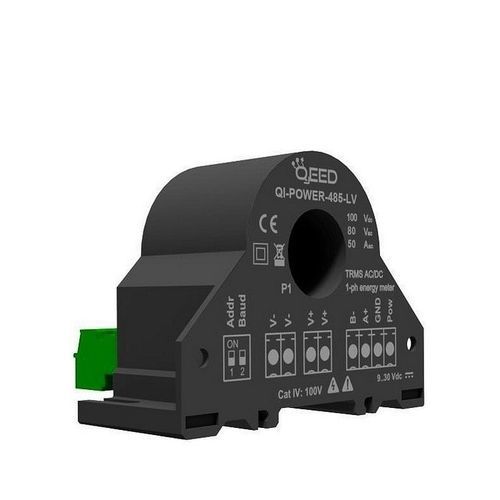

Single-phase electric energy meter QI-POWER-485-LVDIN rail
Add to favorites
Compare this product
Characteristics
- Type
- single-phase
- Assembly
- DIN rail
- Voltage
Min.: 0 V
Max.: 100 V
- Primary current
Min.: 0 A
Max.: 50 A
Description
The QI-POWER-485-LV is the LOW VOLTAGE version of the single-phase power meter QI-POWER-485 which is able to measure currents up to 50 A RMS or DC and voltage up to 80 V AC/100 V DC.
The information provided on the RS485 output is:
-Irms, Vrms, Ipk, Vpk
-Watt
-Var
-Va
-Frequency
-Cosφ
-Energy (bidirectional)
-THD
-The device is fully configurable using the free FACILE QI-POWER-485 software
Other features:
-Ready for DIN rail mounting
-4kV galvanic isolation for voltage input
-Accuracy: 0.5% FS
-RMS or DC measurement
-Variable frequency measurement (DC up to 400 Hz)
-RS485 integrated
-OEM design (low cost)
-Boot loader for updating firmware
