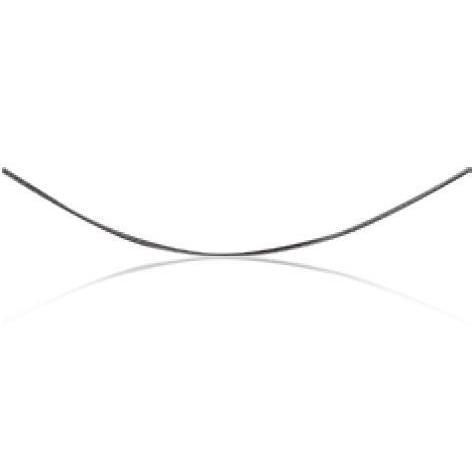

Steel wire rope GC-TM-77-050

tungstenrigid

Product Overview

• High tensile strength suited for static tension and load-bearing applications
• Simple 7*7 stranded construction offering cost-effective manufacturing
• Low flexibility; not recommended for installations with small bending radii

Product Parameters
Construction | Product Code | Diameter (mm) | Breaking Force (N) | Material
7*7 | GC-TM-77-050 | 0.60+0.1 | ≥490 | Tungsten composite tendon rope
7*7 | GC-TM-77-060 | 0.70+0.1 | ≥550 | Tungsten composite tendon rope
7*7 | GC-SM-77-100 | 1.10+0.1 | ≥856 | Composite steel tendon rope
7*7 | GC-SM-77-120 | 1.30+0.1 | ≥740 | Composite steel tendon rope
7*7 | GC-SM-77-150 | 1.60+0.1 | ≥2039 | Composite steel tendon rope
7*7 | GC-SM-77-200 | 2.00+0.1 | ≥2700 | Composite steel tendon rope
Note: Coating thickness and coating performance can be customized and developed according to customer product requirements.

Related Products (listed on page)

• 7*7*7 Structure Tendon Rope Product
• 7*7+8*19 Structure Tendon Rope Product
• 7*7 Structure Tendon Rope Product
• 7*19 Structure Tendon Rope Product

Characteristics / Technical Specifications

• Construction structure: 7*7
• Available codes and specs: GC-TM-77-050 (Ø 0.60+0.1 mm, Breaking Force ≥490 N, Tungsten composite), GC-TM-77-060 (Ø 0.70+0.1 mm, Breaking Force ≥550 N, Tungsten composite), GC-SM-77-100 (Ø 1.10+0.1 mm, Breaking Force ≥856 N, Composite steel), GC-SM-77-120 (Ø 1.30+0.1 mm, Breaking Force ≥740 N, Composite steel), GC-SM-77-150 (Ø 1.60+0.1 mm, Breaking Force ≥2039 N, Composite steel), GC-SM-77-200 (Ø 2.00+0.1 mm, Breaking Force ≥2700 N, Composite steel)
• Material options: Tungsten composite tendon rope; Composite steel tendon rope
• Customization: Coating thickness and coating performance can be tailored to customer requirements
