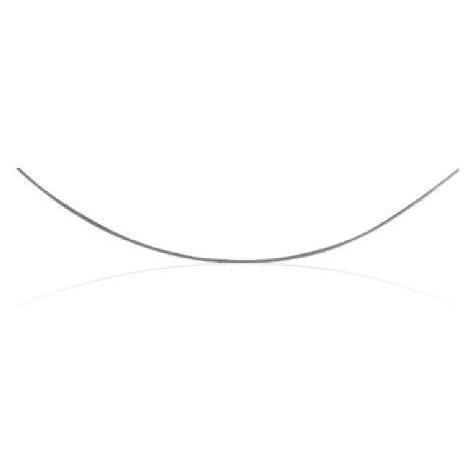

Steel wire rope GC-TM-719-050

tungstenflexiblelong-lasting

Product Introduction

• High tensile strength and excellent wear resistance
• Medium flexibility; not recommended for applications with small bending radii
• Available in tungsten-composite and composite-steel constructions for varied load requirements

Product Parameters
Construction | Product Code | Diameter (mm) | Breaking Force (N) | Material
7*19 | GC-TM-719-050 | 0.60+0.1 | ≥400 | Tungsten composite tendon rope
7*19 | GC-TM-719-060 | 0.70+0.1 | ≥550 | Tungsten composite tendon rope
7*19 | GC-SM-719-100 | 1.10+0.1 | ≥659 | Composite steel tendon rope
7*19 | GC-SM-719-120 | 1.30+0.1 | ≥900 | Composite steel tendon rope
7*19 | GC-SM-719-150 | 1.60+0.1 | ≥1200 | Composite steel tendon rope
7*19 | GC-SM-719-180 | 1.90+0.1 | ≥1800 | Composite steel tendon rope
7*19 | GC-SM-719-200 | 2.10+0.1 | ≥2550 | Composite steel tendon rope
7*19 | GC-SM-719-250 | 2.60+0.1 | ≥4500 | Composite steel tendon rope
7*19 | GC-SM-719-300 | 3.10+0.1 | ≥6000 | Composite steel tendon rope
7*19 | GC-SM-719-400 | 4.10+0.1 | ≥12000 | Composite steel tendon rope
Note: Coating thickness and coating performance can be customized and developed according to customer product requirements.

Features / Technical Specifications

• Construction: 7*19
• Available product codes: GC-TM-719-050 / GC-TM-719-060 (tungsten composite), GC-SM-719-100 to GC-SM-719-400 (composite steel)
• Diameter range: 0.60+0.1 mm to 4.10+0.1 mm
• Breaking force range: ≥400 N to ≥12000 N depending on model
• Customization: coating thickness and performance can be tailored to application requirements

Applications & Recommendations

• Designed for industrial control cables, precision mechanisms, and tensioning systems requiring high strength and wear resistance
• Suitable for medium-flex applications; avoid use on sheaves or pulleys with small bending radii
• Contact supplier for selection guidance based on load, fatigue cycles and environmental conditions
