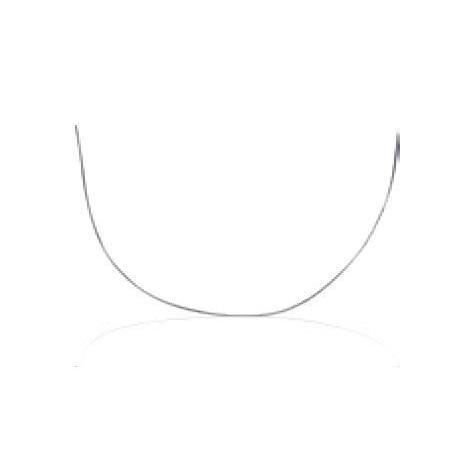

Steel wire rope GC-TM-737-050

tungstenflexible

Product introduction

• High fatigue resistance
• Moderate wear resistance
• High flexibility, suitable for small bending radii

Product parameters
Construction | Product code | Diameter (mm) | Breaking force (N) | Material
7*37 | GC-TM-737-050 | 0.60 ±0.1 | ≥350 | Tungsten composite tendon rope
7*37 | GC-TM-737-066 | 0.760 ±0.1 | ≥800 | Tungsten composite tendon rope
7*37 | GC-SM-737-400 | 4.10 ±0.1 | ≥12000 | Composite steel tendon rope

Note
Coating thickness and coating performance can be customized according to customer product requirements.

Features / technical specifications

• Construction: 7*37
• Product codes: GC-TM-737-050; GC-TM-737-066; GC-SM-737-400
• Diameters (mm): 0.60 ±0.1; 0.760 ±0.1; 4.10 ±0.1
• Breaking force (N): ≥350; ≥800; ≥12000
• Materials: Tungsten composite tendon rope; Composite steel tendon rope
• Performance: high fatigue resistance; moderate wear resistance; high flexibility for small bending radii
• Customization: coating thickness and coating performance available on request
