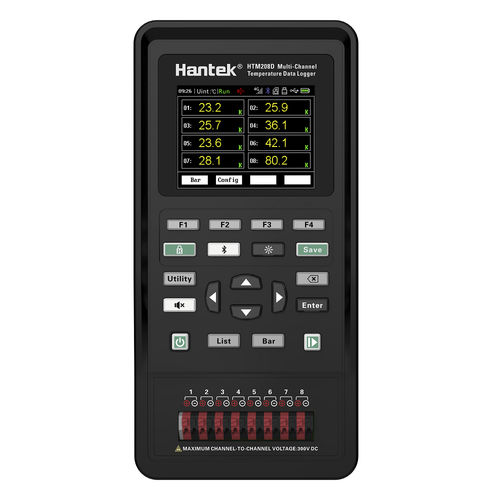

Multi-channel thermometer HTM200 Series

thermocoupledigital°C

HTM200 series handheld multi-channel temperature detector is controlled by high-performance 32-bit ARM microprocessor, which can collect multi-channel temperature data in real time at the same time, support list display and bar graph display, upper and lower limit alarms, and adapt to 11 types of thermocouples. The measurement data is stable and accurate, and it has the function of spouse detection; it comes standard with U disk storage, supports optional SD card, which is convenient for data storage, export and printing; supports optional Bluetooth and 4G functions, which is convenient for remote data collection. - Adopt 18650 standard lithium battery, support Type-C charging; - The digital signal and the analog signal adopt the isolation design, which can carry out the live test, which is safe and reliable; - 320*240 TFT high-definition display screen Intuitively display multi-channel real-time signal changes, switch temperature lists and bar graphs in real time; - Support the test of 11 types of thermocouples such as J/K/T/E/S/N/B/R/A/C/D; - The machine saves the settings of the last shutdown by default, which is convenient for engineers to measure and record; - Standard U disk storage function, support optional Micro SD card data storage; - Over-temperature alarm control: When the set temperature is higher than the upper limit or lower than the lower limit, the buzzer will sound for a long time; - Standard Type-C communication function, support optional Bluetooth module/4G communication module; - Equipped with Windows and Android data acquisition terminals, supporting multi-platform data acquisition and monitoring;
