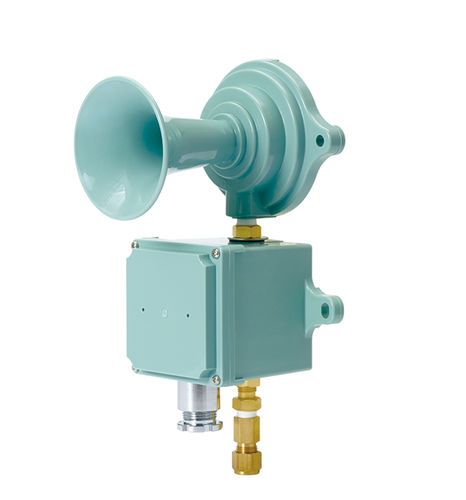

Pneumatic air horn SANA700

waterproof

Short description
Heavy-duty pneumatic air horn designed for marine and heavy industrial alarm applications. Weatherproof audible alarm delivering up to 130 dB (at 1 m), suitable for engine rooms, pump rooms and emergency signaling.

Product features

• High-volume horn uses compressed air to drive a diaphragm producing a high-pitched, far-reaching sound
• Special material minimizes compressed-air consumption and increases service life
• Suitable for large/noisy engine rooms, pump-room telephone alarms, vessel emergency alarms and industrial warning systems
• Standard housing colours: R-Red; BK-Black; 7.5BG (MUNSELL No.7.5BG 7/2)

Technical details

• Model number: SANA700
• Frequency: 700–800 Hz
• Sound level: Max. 130 dB (measured at 1 m)
• Air pressure: 5–7 kg/cm²
• Ambient operating temperature: -20°C to +60°C

Materials and protection

• Horn: PC (polycarbonate)
• Solenoid valve box: ABS
• Protection rating: IP56 (weatherproof)

Dimensions and electrical

• Horn diameter: Ø101 mm
• Height: 222 mm
• Depth: 144 mm
• Weight: 1.07 kg
• Voltage / Current options: DC24V / 450 mA; AC110V / 200 mA; AC220V / 100 mA

Specifications

• Model: SANA700
• Frequency range: 700–800 Hz
• Maximum sound level: 130 dB (at 1 m)
• Air consumption: low (special diaphragm material)
• Operating temperature: -20°C to +60°C
• Protection: IP56
• Housing colours: R-Red; BK-Black; 7.5BG (MUNSELL No.7.5BG 7/2)
