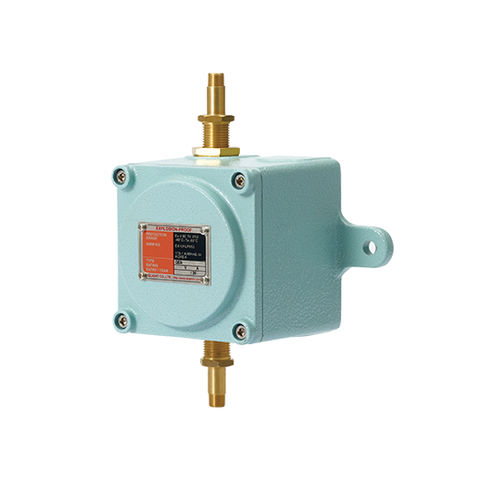

Control electrical enclosure QEBaluminumIP66explosion-proof
Add to favorites
Compare this product
Characteristics
- Function
- control
- Material
- aluminum
- Protection level
- IP66, explosion-proof
- Application
- industrial
- Other characteristics
- for harsh environments, with lid
- Width
120 mm
(4.7 in)- Height
120 mm
(4.7 in)- Depth
119 mm
(4.69 in)
Description
Overview
Key features
Product details
Product specifications
Additional notes
Technical specifications
- Explosion-proof solenoid valve box for mounting and protecting solenoid valves in hazardous areas.
Key features
- Standard housing color: MUNSELL No. 7.5BG 7/2
- Protection rating: Ex d IIC T6, IP66
- Operating ambient temperature: -40°C to +60°C
- Explosion-proof cable gland configuration available as a customization (left image shows a cable gland installed)
Product details
- Product type: Explosion-proof solenoid valve box
- Voltages: DC 24V; AC 110V; AC 220V
- Dimensions: Ø120 × 120 mm; Depth: 119 mm
- Materials: Housing - Aluminum; Cover - Aluminum
- Protection: Ex d IIC T6; IP66
- Certificates: available (certificate icon displayed)
Product specifications
- Model: QEB — DC24V — Current: 450 mA — Weight: 1.19 kg — Color: MUNSELL No. 7.5BG 7/2
- Model: QEB — AC110V — Current: 160 mA — Weight: 1.07 kg — Color: MUNSELL No. 7.5BG 7/2
- Model: QEB — AC220V — Current: 75 mA — Weight: 1.07 kg — Color: MUNSELL No. 7.5BG 7/2
Additional notes
- Standard housing and cover are aluminum
- Explosion-proof cable gland configuration can be provided as a customization
Technical specifications
- Model: QEB
- Supported voltages: DC 24V; AC 110V; AC 220V
- Currents: DC24V – 450 mA; AC110V – 160 mA; AC220V – 75 mA
- Dimensions: Ø120 × 120 mm; Depth: 119 mm
- Materials: Housing - Aluminum; Cover - Aluminum
- Protection rating: Ex d IIC T6; IP66
- Operating ambient temperature: -40°C to +60°C
- Weight: DC24V version 1.19 kg; AC110V/AC220V versions 1.07 kg
- Standard housing color: MUNSELL No. 7.5BG 7/2
- Certificates: available (icon displayed)
