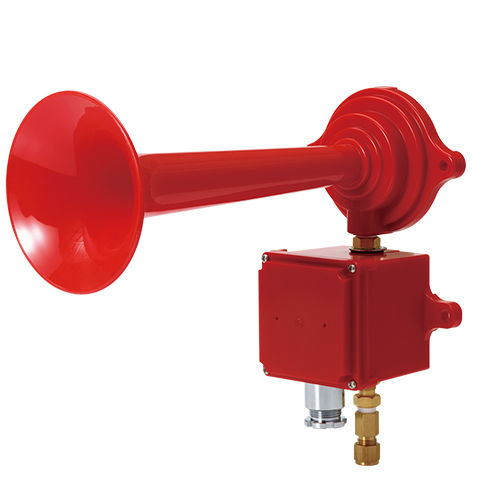

Pneumatic air horn SANA200

powerfulwaterproof

Product Overview
High-volume compressed-air horn designed for marine and heavy industrial applications. Weatherproof audible alarm with a maximum sound level of 130 dB (at 1 m).

Product Features

• High-volume horn uses compressed air to drive a diaphragm producing a high-pitched audible signal
• Special design consumes a small quantity of compressed air while ensuring long service life
• Suitable for large/noisy engine rooms, pump-room telephone alarms, and emergency signaling
• Standard housing colors: R-Red, BK-Black, 7.5BG (MUNSELL No.7.5BG 7/2)
• Materials: Horn - PC; Solenoid valve box - ABS
• Required air pressure: 5–7 kg/cm²
• Ambient operating temperature: -20°C to +60°C

Product Specifications (table)
Model | Frequency | Volume | Certificates | Weight | Voltage | Current | Color
SANA200 | 200–300 Hz | Max. 130 dB (at 1 m) | - | 1.19 kg | DC24V / AC110V / AC220V | DC24V: 450 mA / AC110V: 200 mA / AC220V: 100 mA | R-Red, BK-Black, 7.5BG

Technical specifications

• Model: SANA200
• Frequency: 200–300 Hz
• Sound level: Max. 130 dB (at 1 m)
• Voltage options: DC 24 V, AC 110 V, AC 220 V
• Current: DC24V - 450 mA; AC110V - 200 mA; AC220V - 100 mA
• Dimensions: Horn diameter Ø146 mm; Height 222 mm; Depth 333 mm
• Weight: 1.19 kg
• Materials: Horn - PC; Solenoid valve box - ABS
• Protection rating: IP56
• Air pressure required: 5–7 kg/cm²
• Operating ambient temperature: -20°C to +60°C
• Standard housing colors: Red (R), Black (BK), 7.5BG (MUNSELL No.7.5BG 7/2)
