LED stack light QTC50ML
flashingsteady2-color

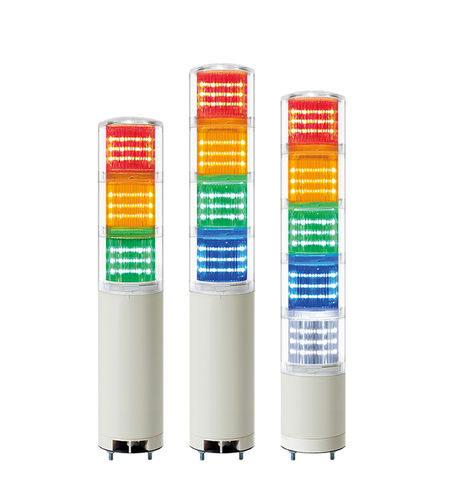

LED stack light - QTC50ML - Qlight Co., Ltd. - flashing / steady / 2-color
LED stack light - QTC50ML - Qlight Co., Ltd. - flashing / steady / 2-color
LED stack light - QTC50ML - Qlight Co., Ltd. - flashing / steady / 2-color - image - 2
Add to favorites
Compare this product
Go to the Qlight Co., Ltd. website for more information

Characteristics

Technology
LED
Type
flashing, steady
Number of colors
3-color, 4-color, 2-color, 5-color
Protection level
IP65, IP54
Mounting
surface-mount
Options and accessories
with buzzer
Other characteristics
modular

Description

Overview
  • Ø50 mm direct-mount LED signal tower for industrial signalling
  • Modular design with steady and steady/flashing LED modules
  • Optional built-in buzzer up to 85 dB (higher-volume and two-tone options available)


Key features
  • Clear outer lens with separate internal color filter for distinct signal colours
  • Lock-type structure enables tool-free addition/removal of modules and colour reconfiguration
  • QTCA variants integrate lens and cover for a simplified external appearance
  • Translucent filter ensures comfortable close-up viewing when lights are off
  • Built-in buzzer: standard Max. 85 dB at 1 m; optional high-volume (100 dB) and 2-sound configurations
  • Compatible with NPN open-collector input; PNP types available
  • Flashing rate: 60–80 flashes/min
  • Operating temperature: -30°C to +50°C
  • Protection: standard IP65; built-in buzzer type IP54
  • Pre-wired standard; M12 connector available on request
  • 24 VDC UL-listed model available as option
  • Certifications: CE compliant, UL listed; RoHS compliant


Product brief
  • Product family: QTC / QTCA Series
  • Model variants: steady, steady with built-in buzzer (-BZ), steady/flashing (-F), steady/flashing with buzzer (-F-BZ), and QTCA integrated-cover variants


Available colours (by number of layers)
  • 1 layer: R (Red)
  • 2 layers: R (Red) / G (Green)
  • 3 layers: R (Red) / A (Amber) / G (Green)
  • 4 layers: R (Red) / A (Amber) / G (Green) / B (Blue)
  • 5 layers: R (Red) / A (Amber) / G (Green) / B (Blue) / W (White)


Technical tables
Model / Layer / Voltage / Certificates / Weight / Colour
  • Models: QTC50ML, QTC50ML-BZ, QTC50MLF, QTC50MLF-BZ, QTCA50ML, QTCA50ML-BZ, QTCA50MLF, QTCA50MLF-BZ
  • 1 layer: DC12V / DC24V / AC110–220V — CE, UL — ≈0.20 kg (DC12/24V) / 0.30 kg (AC) — R
  • 2 layers: DC12V / DC24V / AC110–220V — CE, UL — ≈0.28 kg / 0.38 kg — R; G
  • 3 layers: DC12V / DC24V / AC110–220V — CE, UL — ≈0.37 kg / 0.47 kg — R; A; G
  • 4 layers: DC12V / DC24V / AC110–220V — CE, UL — ≈0.45 kg / 0.55 kg — R; A; G; B
  • 5 layers: DC12V / DC24V / AC110–220V — CE, UL — ≈0.54 kg / 0.64 kg — R; A; G; B; W


Light source / buzzer current (based on 1 layer)
  • Voltage: DC12V | DC24V | AC110–220V
  • Light source current (1 layer): 90 mA | 70 mA | Max. 55 mA
  • Buzzer current (1 layer): 40 mA | 75 mA | Max. 55 mA


Sound tone combinations (standard)
  • 1 buzzer sound: Pi-- Pi-- (slow)
  • 2 buzzer sounds (custom): Pi--- Pi--- (moderate); Pi pi pi (short)
  • Continuous buzzer (custom): Pi--- continuous


Materials
  • Lens: PC
  • Inner lens: PC
  • Housing: ABS


Technical specifications
  • Model name: QTC50ML / QTCA50ML (variants: -BZ = built-in buzzer, -F = steady/flashing)
  • Nominal diameter: Ø50 mm
  • Height range (depending on layers/accessories): 116–364 mm
  • Supported voltages: DC12V, DC24V, AC 100–240V (AC type free-voltage range 100–240V)
  • Flashing rate: 60–80 flashes/min
  • Operating temperature: -30°C to +50°C
  • Protection rating: Standard IP65; built-in buzzer type IP54
  • Maximum buzzer volume: up to 85 dB at 1 m (options for 100 dB and 2-sound available)
  • Interface: compatible with NPN open-collector input; PNP available; pre-wired standard; M12 connector optional
  • Weights vary by layers and voltage (see table above)
  • Certifications: CE compliant; UL listed (24VDC UL-listed model optionally available)
  • RoHS compliant
