LED stack light QTC70L
flashingsteady5-color

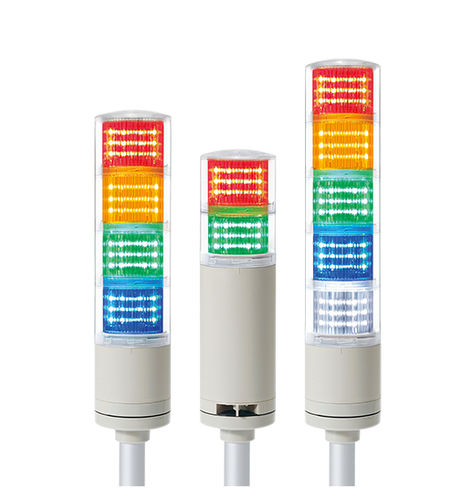

LED stack light - QTC70L - Qlight Co., Ltd. - flashing / steady / 5-color
LED stack light - QTC70L - Qlight Co., Ltd. - flashing / steady / 5-color
LED stack light - QTC70L - Qlight Co., Ltd. - flashing / steady / 5-color - image - 2
Add to favorites
Compare this product
Go to the Qlight Co., Ltd. website for more information

Characteristics

Technology
LED
Type
flashing, steady
Number of colors
5-color
Protection level
IP65, IP54
Mounting
pole-mounted
Options and accessories
with buzzer
Other characteristics
modular

Description

Product Overview
  • Ø70mm pole-mount signal tower with modular LED steady/flashing modules
  • Models: QTC70L and QTCA70L (QTCA: integrated lens/cover)
  • Available in 1 to 5 layers; various color combinations
  • Optional built-in buzzer (standard up to 85 dB; optional 100 dB and 2-sound types)
  • Protection: IP65 standard; built-in buzzer type IP54
  • Operating temperature: -30°C to +50°C
  • Power options: DC12V, DC24V, AC110–220V (AC models: 100–240V range); UL-listed DC24V available
  • Pre-wired as standard; M12 connector on request


Key Features
  • Modular construction permits tool-less addition or replacement of modules (lock-type)
  • Separate inner color filter lens for clearer signal emission
  • QTCA variant provides an integrated lens and cover for a cleaner appearance
  • Translucent filter reduces glare when unit is off
  • Wide selection of mounting brackets for pole installation
  • Built-in buzzer options and multiple sound-tone configurations
  • Direct PLC connection: supports NPN open-collector input; PNP types also available
  • Flashing rate: 60–80 flashes per minute


Product Specifications (summary)
  • Models: QTC70L / QTC70L-BZ / QTC70LF / QTC70LF-BZ / QTCA70L / QTCA70L-BZ / QTCA70LF / QTCA70LF-BZ
  • Layers: 1 – 5
  • Available voltages: DC12V / DC24V / AC110–220V (AC models: 100–240V)
  • Weights (approx.): 1 layer 0.56kg (DC12/24V) / 0.66kg (AC); 2 layers 0.68kg / 0.78kg; 3 layers 0.83kg / 0.92kg; 4 layers 0.98kg / 1.08kg; 5 layers 1.22kg / 1.31kg
  • Colors: R-Red; A-Amber; G-Green; B-Blue; W-White (configurable by layer)


Electrical / Buzzer current (based on 1 layer)
  • DC12V: light 105 mA; buzzer 40 mA
  • DC24V: light 70 mA; buzzer 75 mA
  • AC110–220V: light max. 60 mA; buzzer max. 55 mA


Sound Tone Combinations (standard)
  • 1 Buzzer sound — Pi-- Pi-- (slow)
  • 2 Buzzer sounds (customizable) — Pi--- Pi--- (moderate); Pi pi pi (short)
  • Continuous tone (customizable)


Mechanical & Mounting
  • Diameter: Ø70 mm
  • Height (depending on layers and accessories): approx. 274–557 mm
  • Lens: PC; Inner lens: PC; Housing: ABS; Pole: Aluminum
  • Mounting: pole/bracket options for industrial installations


Certifications & Ordering
  • Certifications: CE, UL; RoHS compliant
  • UL-listed models available for DC24V
  • Standard pre-wired configuration; specify M12 connector, buzzer type, number of layers and voltage when ordering
