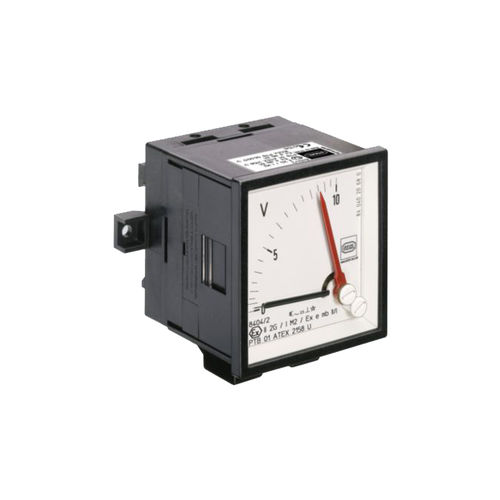

Analog voltmeter 8404C6-10

stationaryAC

Moving iron voltmeter direct measuring Highlights - Various versions of ammeters, for Ex e enclosures Quick comparison of measured values using externally adjustable red pointer on the device Selection of different voltage measuring ranges between 0 and 500 volts Functional Description - R. STAHL Series 8404C6 voltmeters are installed in enclosures with Ex e type of protection. They provide measured values which can be quickly compared with the target values via a red pointer affixed on the outside. The devices use a moving iron movement with accuracy class 2.5. Explosion Protection Application range (zones) - 1, 2, 21, 22 IECEX firedamp certificate - IECEx SIQ 18.0001U ATEX gas certificate - SIQ 18 ATEX 016 U ATEX firedamp certificate - SIQ 18 ATEX 016 U IECEX gas certificate - IECEx SIQ 18.0001U Area of application - European Union (ATEX), IECEx Ex version - Ex e IECEx gas explosion protection - Ex eb mb IIC T6 ... T4 Gb IECEx firedamp protection - Ex eb mb I Mb ATEX gas explosion protection - II 2 G Ex eb mb IIC T6 ... T4 Gb ATEX firedamp protection - I M2 Ex eb mb I Mb Marking ULus - Class I, Zone 1 AEx eb mb IIC T6, T5, T4 Gb U Class I, Div. 2, Groups A,B,C,D, T6 Marking cUL - Class I, Zone 1 Ex eb mb IIC T6, T5, T4 Gb U Class I, Div. 2, Groups A,B,C,D, T6 Explosion protection note - For product label, see scope of validity. Electrical Data Rated operational voltage AC - 10 V Rated operational voltage AC UL - 10 V Rated insulation voltage - 690 V Frequency - 50/60 Hz AC, DC Power dissipation - 1.900 VA Movement - 0 to 10 V Overload capacity - 2 x UN 60 sec Frequency range - 16 - 100 Hz AC, DC
