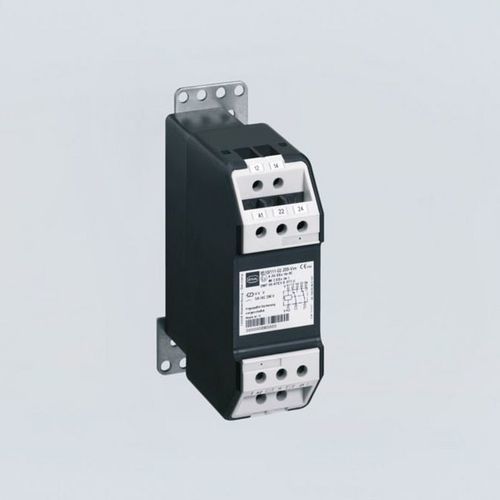

Modular contactor 8510/111-02-209-020

motorreversingauxiliary

Type-tested standard components Corrosion-resistant enclosure material Functional Description - The R. STAHL Series 8510 relay module provides cost-effective overload protection for motors. It is available in various versions and can contain up to 4 relays, each with different contact types. It can be fitted in Ex e enclosures using an anti-vibration screw connection, easily accessible terminals simplify installation. Explosion Protection Application range (zones) - 1, 2 IECEX gas certificate - IECEx BVS 07.0029U IECEx gas explosion protection - Ex db eb IIC IECEX firedamp certificate - IECEx BVS 07.0029U IECEx firedamp protection - Ex de I ATEX gas certificate - DMT 00 ATEX E 073 U ATEX gas explosion protection - II 2 G Ex db eb IIC ATEX firedamp certificate - DMT 00 ATEX E 073 U ATEX firedamp protection - I M2 Ex de I ATEX firedamp protection 2 - I M2 Ex I Certificates - ATEX (BVS), Brazil (ULB), China (CQST), IECEx (BVS) Mechanical Data Enclosure material - Epoxy resin Connection cross-section - 1.50 mm² Connection cross section min. - 0.75 mm² Max. connection cross section, solid - 2,50 mm² Max. connection cross-section, finely stranded - 1,50 mm² Type of connection cable - Finely stranded, solid Width - 48 mm Height - 130 mm Depth - 110.500 mm Weight - 1.2 kg Weight - 2.65 lb
